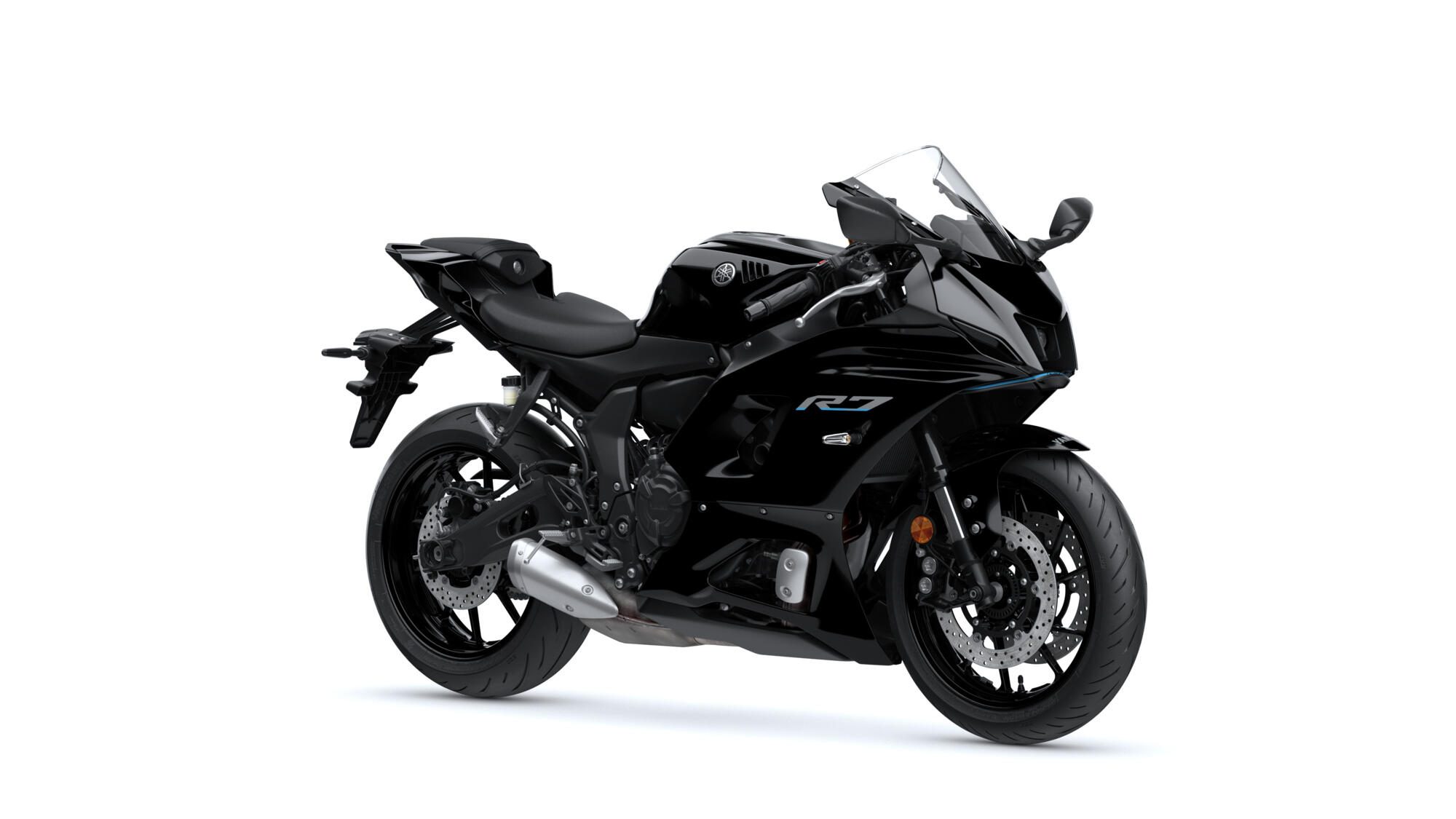

R7
Yamaha’s R-series models have delighted thousands of riders for over 20 years. Now, a sporty mid-displacement model is added to the range, ready to welcome a new generation of riders to the R World. Fast, agile and daring, the R7 offers sporty performance to enjoy every day.
ⓘ Professional pilot with advanced technique in a closed area.
Take a look
- High torque 689cc CP2 engine
- Sporty design with the DNA of the R series
- Aerodynamic screen and double front optics
- A&S clutch for increased controllability
- Lightweight frame tuned to increase rigidity in the chassis
- Adjustable rear shock with links
- Fully adjustable 41mm inverted front forks
- Sporty, ergonomic riding position offers optimum agility
- Radial mount front brake calipers
- Lightweight 10-spoke wheels
- Optional quick-shift system for smooth upshifts
- state-of-the-art colors
- Pure R-series style
- 35kW A2 version is also available
Where the R World meets yours
The uncompromising 689cc CP2 engine with A&S clutch delivers punchy TORQUE and acceleration for a truly sporty riding experience on track and road alike. The super-narrow, aerodynamic bodywork features striking dual headlights with a powerful central LED headlight. Meanwhile, the radical shape of the rear tail and tank is infused with R-series DNA. The R7’s advanced-spec suspension and brakes offer optimum controllability when cornering and braking.
The R7’s frontal area is the smallest of any R-series model and ensures the highest levels of aerodynamic efficiency, while clip-on bars, rearset footpegs and a low seat allow for a comfortable yet sporty riding position. This outstanding new generation of Supersport makes the Mundo R a reality for thrill-seeking riders, both on track and on the road.
Technical specifications
Engine type: 4-stroke, Liquid-cooled, 4-cylinder, DOHC, 4-valve
Displacement: 998cc
Bore x Stroke: 79.0×50.9mm
Compression ratio: 13.0 : 1
Maximum power: 147.1 kW (200.0 hp) at 13,500 rpm
Limited power version: 147.1 kW (200.0 hp) at 13,500 rpm
Maximum torque: 113.3 Nm (11.6 kg-m) at 11,500 rpm
Lubrication system: Wet sump
Clutch type: Wet, Multi-disc
Ignition system: TCI
Starting system: Electric
Drive system: Constant engagement, 6-speed
Final Drive: Chain
Approved consumption: 6.8 l/100 km
CO2 emission:159 g/km
Carburettor: Electronic fuel injection
Chassis: Diamond
Pivot lead angle: 23°40
Pivot advance: 90 mm
Front suspension system: telescopic fork
Rear suspension system: Swing arm, link type suspension
Front travel: 130 mm
Rear travel: 130 mm
Front brake: Hydraulic double disc brake, Ø 298 mm
Back brake: Hydraulic single disc brake, Ø 245 mm
Front tire: 120/70ZR17M/C (58W) sin tubo
Rear tyre: 180/55ZR17M/C (73W) sin tubo
Total length: 2055 mm
Total width: 705 mm
Total height: 1.160 mm
Seat height: 835 mm
Distance between axis: 1.395 mm
Minimum ground clearance: 135 mm
Weight (including full oil tank and fuel tank): 188 kg
Fuel tank capacity: 13,0 l
Oil tank capacity: 3,0 l
