NEO's Dual Battery

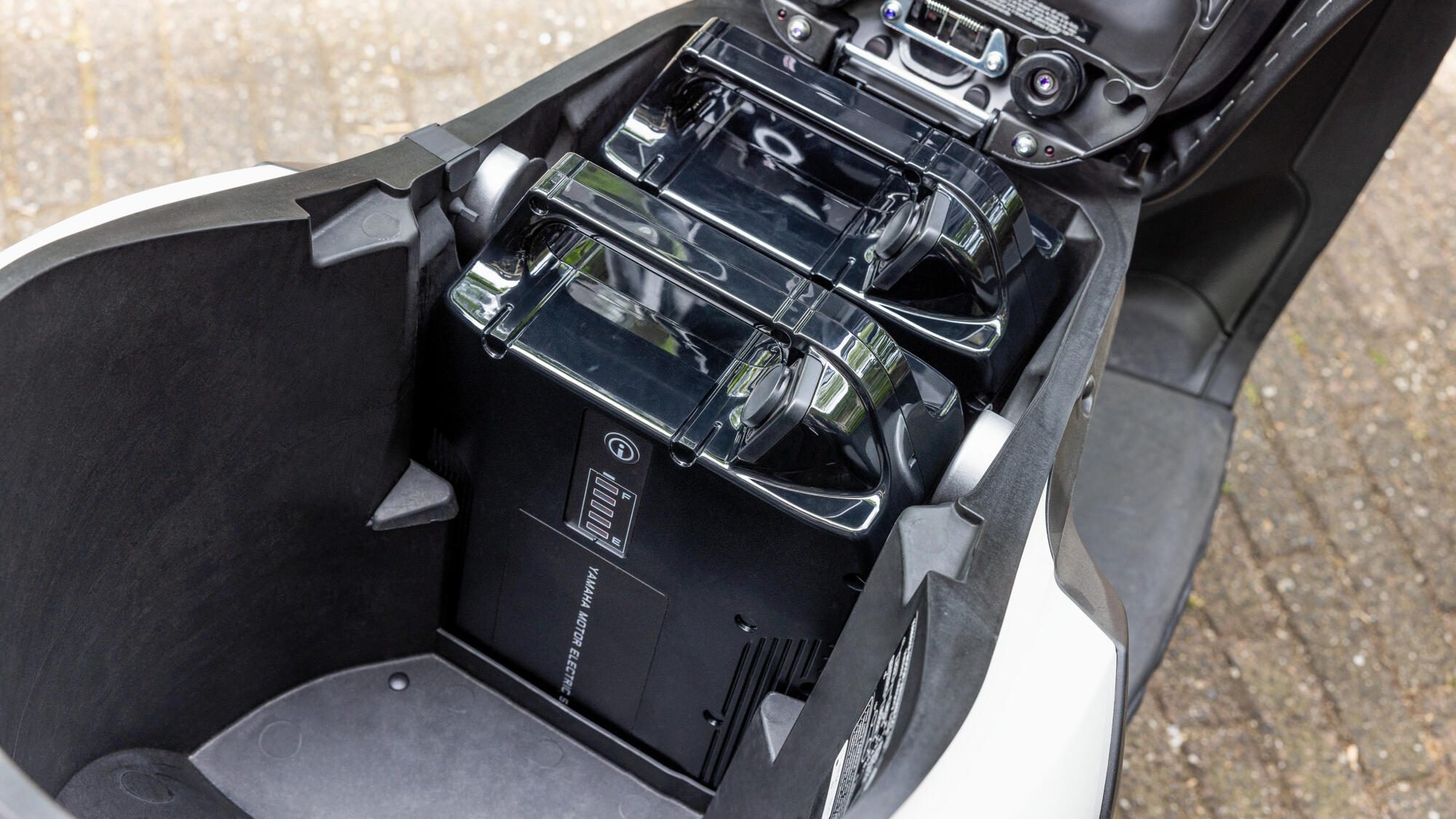

NEO’s Dual Battery is the smart move for riders who are looking for an extended riding range of up to 68km*. Located beneath the flip-up seat, the two portable lithium-ion batteries are designed to maintain a high level of efficiency for 10,000km / 2 years – and can be charged while on the scooter or easily removed and charged in your office or home. (*Tested in WMTC Class 1 in STD mode, fully charged battery at a temperature of 25°C.)
Take a look
- Motor Blue Core compliant with EURO5 of 125 cc
- sporty body design
- Smooth, quiet and efficient electric power
- Direct Drive Hub Mounted Electric Motor
- Quick and controllable acceleration
- Universal riding position for any size and experience
- Removable Yamaha Lithium-Ion Battery
- Selectable driving modes
- ultra-quiet operation
- Simple, compact and universal styling
- Connectivity with the Yamaha MyRide app
- Jet helmet under seat storage
- Sleek, easy-to-read LCD instrumentation
- Smart Key keyless system
- Full LED lighting
move smart
Yamaha has been developing and manufacturing electric vehicles for three decades. In addition, they are recognized as one of the most respected manufacturers of high-quality scooters in the world, so you can be sure that the stylish new NEO’s incorporate attractive design, the latest technology and first-class reliability.
Comfortable, agile and easy to ride, this next-generation Yamaha scooter features a lithium-ion battery and hub-mounted electric motor that gives you strong, controllable acceleration, yet zero emissions and an extremely quiet ride. NEO’s: Move smart.
Technical specifications
Electric motor type: Excitation 3 phase synchronized motor
Rated power: 2,3 kW/424 r/min
maximum power: 2,5 kW (3,4 PS)/400 r/min
maximum torque: 136 N・m(13,9 kgf・m)/50 r/min
Battery Type: Lithium ion
Battery voltage, capacity: 50,4 V, 19,2 Ah (5 HR)
Total number of batteries installed: 2
Maximum number of batteries: 2
Battery fixing: Removable
1st Battery Range (WMTC Class 1):37 km
1st Battery Range, Eco mode: 38.5km: This interval changes depending on the location, driving style and battery degradation.
1st and 2nd Battery Range: 68km: This interval changes depending on the location, driving style and battery degradation.
Battery weight: 8,0 kg
Battery dimensions: 360mm (length) x 215mm (depth) x 105mm (height)
Power Consumption (WMTC Class 1): 31 Wh/km
Charger type: 220 VAC wall charger; output: 58.8V, 3A
Charge time (0-100%): 8 hours: Charging times may vary depending on the charging environment.
Charging time (20-80%): 4 hours: The charging time may change depending on the conditions of use and the degradation of the battery.
Chassis: Underbone
Pivot lead angle: 25°30′
Pivot advance: 84 mm
Front suspension system: telescopic forks
Front travel: 90 mm
Rear suspension system: swing arm
Rear travel: 80 mm
Front brake: hydraulic disc brake
Back brake: mechanical drum brake
Brake disc diameter (front): 200 mm
Front tire: 110-70-13M/C 48P, without camera
Rear tire: 130-70-13M/C 63P, without camera
Total length: 1875 mm
Overall width: 695 mm
Total height: 1120 mm
Seat height: 795 mm
Distance between axis: 1305 mm
Minimum ground clearance: 135 mm
Vehicle weight (without battery): 90Kg
