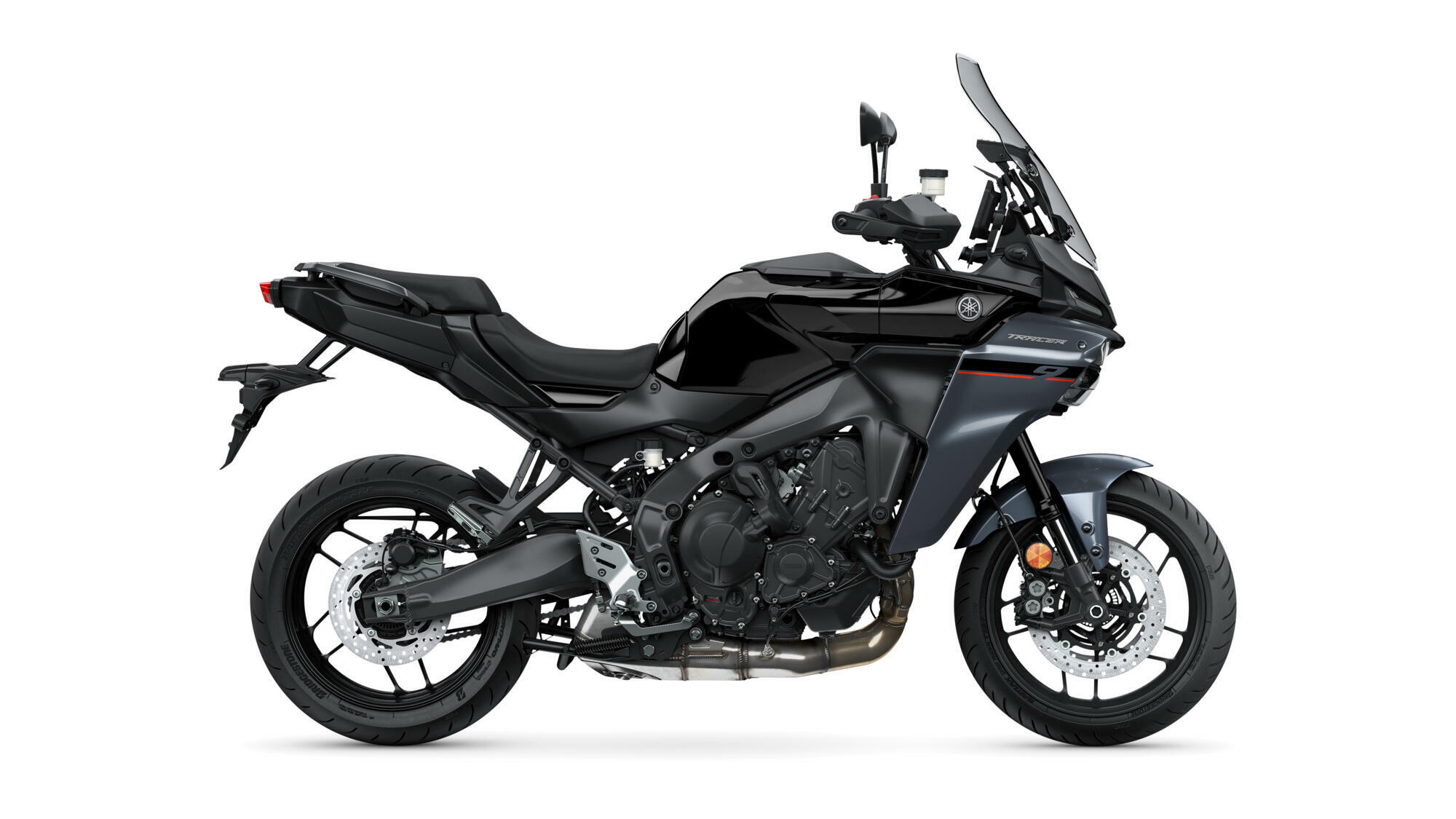

TRACER 9
With Yamaha’s famous Deltabox chassis and the near legendary CP3 engine at its heart, it’s no surprise the TRACER 9 continues to redefine the sport touring class. With Yamaha’s DNA running through it, TRACER 9 is a sportbike when you want, while being equally at home touring with a passenger and luggage. Fully adjustable suspension, switchable riding modes and with the option of Yamaha Automated Manual Transmission (Y-AMT) the TRACER 9 brings new levels of adaptability and excitement to the middleweight sector.
ⓘ Professional pilot with advanced technique in a closed area.
Take a look
- Yamaha’s sporting heritage runs throughout TRACER 9, with the Deltabox frame and fully adjustable suspension combining to create a motorcycle without compromise when you want to push hard on your favourite road. With its integrated riding modes, third-generation quickshifter and six-axis IMU controlled lean-sensistive rider aids, the TRACER 9 brings new levels of sophistication to the middleweight sports touring category.
Where the R World meets yours
Standard specification on the TRACER 9 includes a premium 7″ TFT dashboard, cornering LED headlights, a 10-step adjustable windscreen and a saddle with low and high seat settings. With TRACER 9 the emphasis is on creating a motorcycle which adapts to the rider and can do everything exceptionally well, giving an exhilarating ride without compromise.
Designed to take on the roads of life, the TRACER 9 is packed with clever engineering and design solutions to ensure the best possible riding experience. Lightweight wheels, constructed using Yamaha’s SpinForge process and shod with bespoke Bridgestone tyres, contribute to a light and agile machine, beautifully matched to the playful three-cylinder crossplane engine and lean-sensitive electronic rider aids.
Technical specifications
| Engine type | 4-stroke, Liquid-cooled, DOHC, 4-valves, 3-cylinder |
| Displacement | 890cc |
| Bore x stroke | 78 x 62.1 mm |
| Compression ratio | 11,5 : 1 |
| Maximum power | 87.5 kW (119 PS) @ 10,000 rpm |
| Maximum torque | 93 Nm (9.5 kg-m) @ 7,000 rpm |
| Lubrication system | Wet sump |
| Clutch type | Wet, Multiple Disc |
| Ignition system | TCI |
| Starter system | Electric |
| Transmission system | Constant Mesh, 6-speed |
| Final transmission | Chain |
| Fuel consumption | 5 L/100 km |
| CO2 emission | 116 g / km |
| Fuel system | Fuel Injection |
| Frame | Diamond |
| Caster angle | 24°25′ |
| Trail | 106 mm |
| Front suspension system | Telescopic fork |
| Rear suspension system | (Link type suspension), Swingarm |
| Front travel | 130mm |
| Rear travel | 131 mm |
| Front brake | Hydraulic dual disc brake, Ø 298 mm |
| Rear brake | Hydraulic single disc brake, Ø 267 mm |
| Front tyre | 120/70ZR17M/C (58W) Tubeless |
| Rear tyre | 180/55ZR17M/C (73W) Tubeless |
| Overall length | 2,175 mm |
| Overall width | 900 mm |
| Overall height | 1.460 mm – 1.505 mm |
| Seat height | 845 mm – 860 mm |
| Wheel base | 1.500 mm |
| Minimum ground clearance | 135 mm |
| Wet weight (including full oil and fuel tank) | Standard 6-speed manual: 219 kg; Y-AMT: 224 kg |
| Fuel tank capacity | 19 L |
| Oil tank capacity | 3.5 L |
