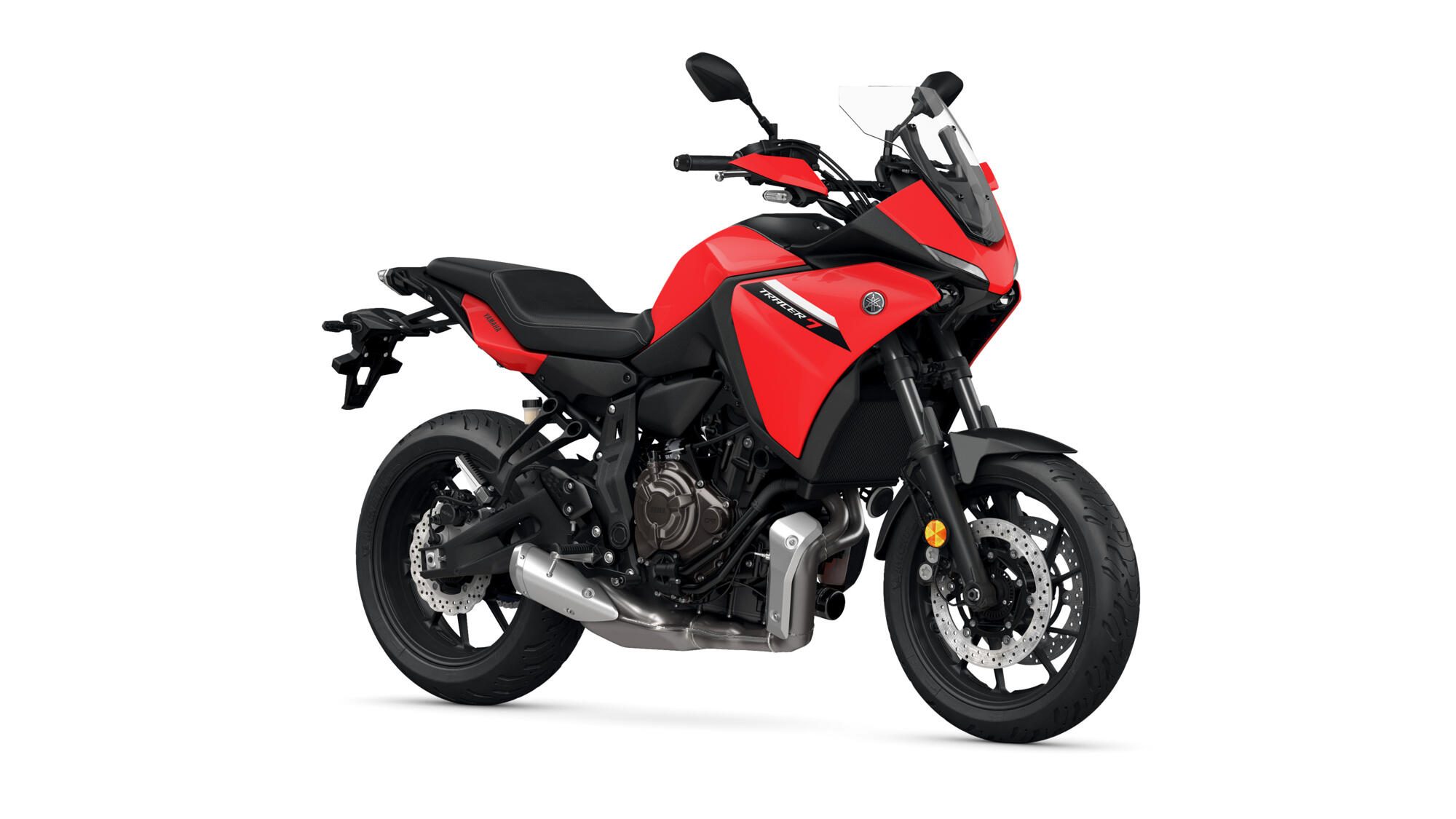

TRACER 7
With that exciting character and big personality, the TRACER 7 is equipped to send your adrenaline pumping every time you get on the bars. Whether it’s after work or on the weekend, this dynamic Sport Tourer is ready to thrill you with its superb performance, lightness and agility.
Take a look
- 35 kW A2 version also available
- TFT display with smartphone notifications
- CP2 engine with more torque and more response that complies with the EU5 standard
- Compact half fairing with sporty front
- Spot-beam LED headlights, position lights and turn signals
- The lightest in its class
- Adjustable front and rear suspension
- Aerodynamic visor with one-hand adjustment
- Dominant riding style with comfortable ergonomics
- Double bucket seat for driver and passenger comfort
- Long range autonomy
It is your moment
The 690cc EU5 engine produces a continuous surge of torque throughout the rev range for impressive acceleration in every gear. Likewise, the compact chassis and the adjustable suspensions allow you to take each curve with speed and precision.
The aerodynamic bodywork with double LED headlights reinforces the modern design and forceful appearance of the bike, while the full color TFT instrumentation allows you to see notifications from your smartphone. And with its long-ride ergonomics, wide handlebars, and adjustable screen, this versatile mid-power machine is always ready for your next road trip. TRACER 7: It’s your time.
Technical specifications
Engine type: 4-stroke, 2-cylinder, Liquid-cooled, DOHC, 4-valve
Displacement: 689cc
Bore x Stroke: 80.0 x 68.6mm
Compression ratio: 11.5:1
Maximum power: 54.00 kW @ 8750rpm
Limited power version: 35.0kW @ 7750rpm
Maximum torque: 35.0kW @ 7750rpm
Lubrication system: Wet sump
Clutch type: Wet, Multi-disc
Ignition system: TCI
Starting system: Electric
Drive system: Constant take, 6-speed
Final Drive: Chain
Approved consumption: 4.3L/100km
CO2 emission: 100g/km
Carburetor: Electronic fuel injection
Chassis: Diamond
Pivot lead angle: 25°
Pivot advance: 90mm
Front suspension system: Telescopic fork
Rear suspension system: Link type suspension, swing arm
Front Travel: 130mm
Rear travel: 142mm
Front brake: Hydraulic double disc brake, Ø 298 mm
Rear brake: Hydraulic single disc brake, Ø 245 mm
Front tire:120/70Z R17 M/C (58W)
Rear tire: 180/55Z R17 M/C (73W)
Total length: 2140mm
Total width: 840mm
Total height: 1290mm-1330mm
Seat height: 835mm
Distance between axis: 1460mm
Minimum ground clearance: 140mm
Weight (including full oil tank and fuel tank): 197kg
Fuel tank capacity: 17.0L
Oil tank capacity: 3.0L
