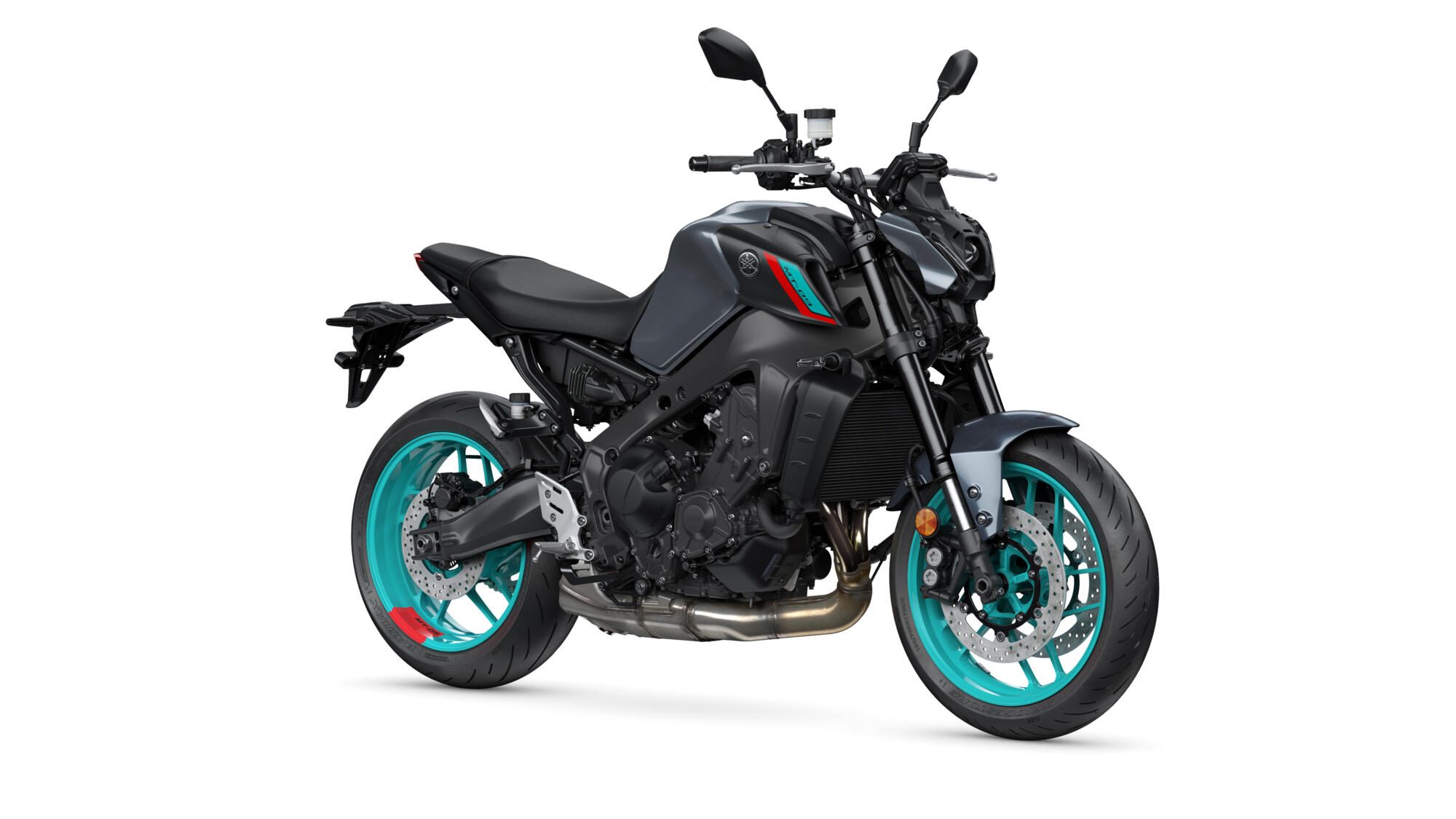

MT-09
The original MT-09 was a totally revolutionary Japanese machine that brought pure excitement and excitement back to the world of motorcycles. He inspired more than 50,000 European pilots to become part of the growing Hyper Naked movement. Surrender to the power of the MT-09 and join the dark side of Japan.
Take a look
- The MT-09 A2 version of 35kW is also available.
- Adjustable suspension for better sporty driving
- Lightweight CF cast aluminum chassis
- State-of-the-art design and style
- 6-axis IMU plus tilt-sensitive driver aids
- 3.5 inch full color TFT screen
- Compact, bi-functional LED headlight
- Quick Shift System (QSS)
- SpinForged lightweight wheels
- front radial master cylinder
- Motor EU5 CP3 de 890 cc
- Conforme a 95 dB
the power of darkness
Its large displacement 890cc CP3 EU5 engine generates high levels of low-end torque, resulting in explosive acceleration and better road performance. A high-tech 6-axis IMU regulates best-in-class electronic piloting aids to give you maximum control. And QSS allows for super-fast upshifts and smoother downshifts.
For ultra-precise behaviour, the MT-09 is equipped with a compact aluminum chassis, adjustable suspension and super-light wheels. Dual 298mm front discs with radial master cylinder ensure maximum control with a simple fingertip on the lever. The radical new generation style and the design purity of its exposed chassis confirm the MT-09 as a pure and hard Hyper Naked.
Technical specifications
Engine type: Liquid-cooled, 4-stroke, 4-valve, 3-cylinder, DOHC
Displacement: 890 cc
Bore x Stroke: 78,0 × 62,1 mm
Compression ratio: 11.5 : 1
Maximum power: 87.5 kW (119.0 CV) and 10,000 rpm
limited power version: A2 Version restricted – 35,0 kW (47,6 PS) @ 6.000 rpm A2 Version unrestricted – 70,0 kW (94 PS) @ 6.000 rpm
Maximum torque: 93,0 Nm (9,5 kg-m) a 7000 rpm
Lubrication system: Wet sump
Clutch type: Wet, Multi-disc
Ignition system: TCI
Starting system: Electric
Drive system: Constant take, 6-speed
Final Drive: Chain
homologated consumption: 5.0L/100km
CO2 emission: 116 g/km
Carburetor: electronic fuel injection
Chassis: Diamond
Pivot lead angle: 25º
Pivot advance: 108 mm
Front suspension system: Telescopic fork
Rear suspension system: Link type suspension, swing arm
Front Travel: 130 mm
Rear travel: 122mm
Front brake: Hydraulic double disc brake, Ø 298 mm
Rear brake: Hydraulic single disc brake, Ø 245 mm
Front tire: 120/70 ZR17M/C (58 W) Tubeless
Rear tire: 180/55 ZR17M/C (73 W) Tubeless
Total length: 2,090mm
Total width: 795mm
Total height: 1,190mm
Seat height: 825mm
Distance between axis: 1,430mm
Minimum ground clearance: 140mm
Weight (including full oil tank and fuel tank): 189 kg
Fuel tank capacity: 14l
Oil tank capacity: 3,50l
