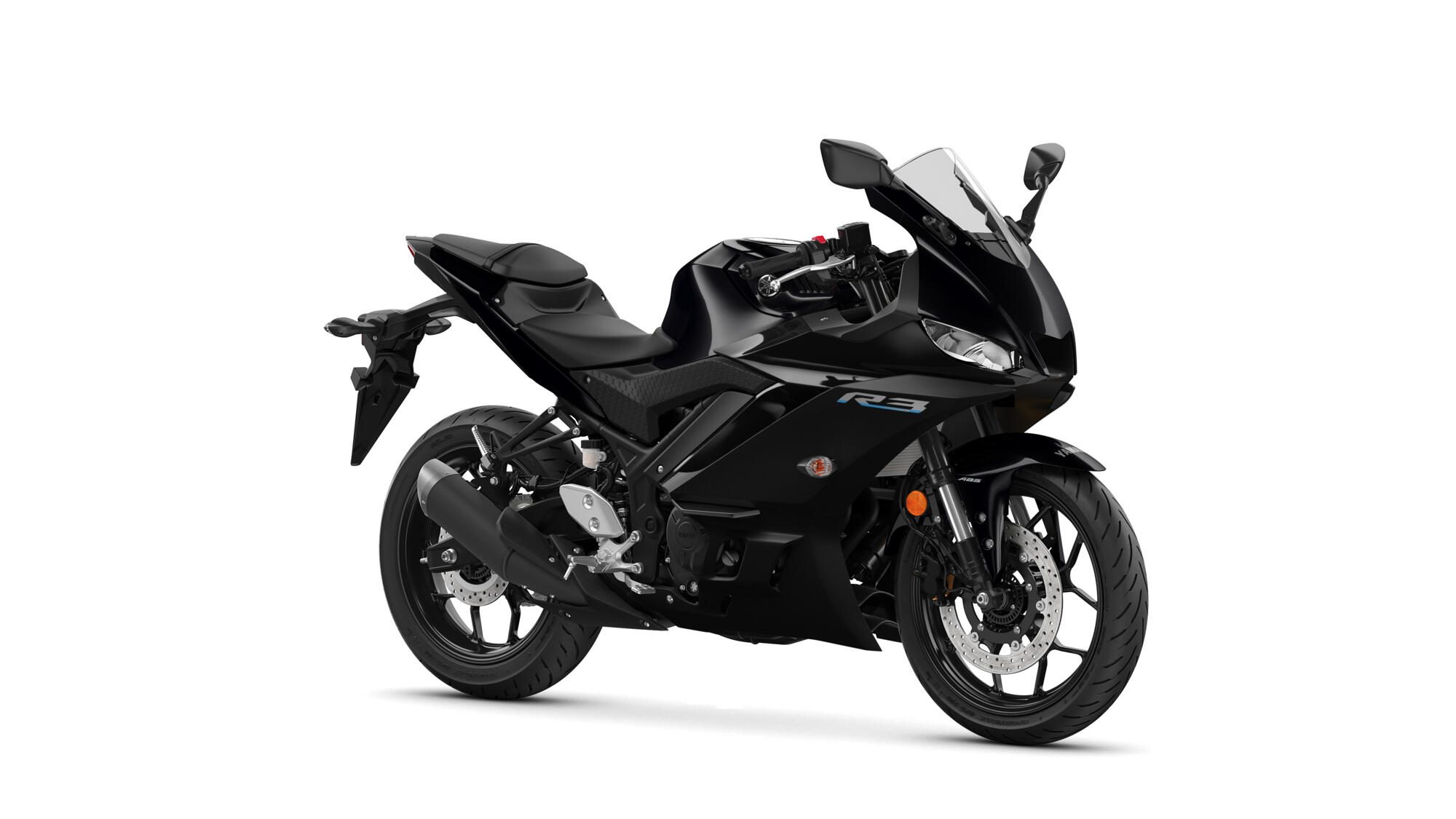

R3
The R World is calling you. Powered by a high-revving 321cc EU5 engine, the R3 comes fully equipped with a wide range of decisive features that deliver outstanding performance, along with class-leading quality and styling that won’t leave you indifferent. It is Yamaha’s quintessential A2 permit drivable lightweight supersport.
Take a look
- EU5 compliant high revving 321cc engine
- M1-inspired bodywork in two-tone Icon Blue color scheme
- Aggressive front end inspired by the R1
- Light super sports motorcycle with A2 license
- Slim and lightweight sports chassis
- Dual R1-inspired LED headlights
- KYB 37mm inverted front forks
- Low fuel tank and handlebar position
- Lightweight wheels and super sports tires
- Powerful braking system with ABS
- Weight distribution balanced around 50/50
- Multifunction digital instrumentation
The R World is calling you.
The R3’s sleek and athletic bodywork features a central air intake inspired by Yamaha’s iconic MotoGP®-winning M1 machine. Its radical aesthetics, its aerodynamic competition fairing and the aggressive style of its dual LED headlights highlight the pure DNA of the R range, making it the most coveted 300, both on the street and on the track.
The high-end 37mm inverted front fork ensures better suspension feel and response, while the low fuel tank and handlebar position allow the R3 to offer an ergonomic riding position, giving you a great ride. comfort without giving up the most precise control. You are ready to enter the R World.
Technical specifications
Type of motor: 4-stroke, 2-cylinder, Liquid-cooled, DOHC, 4-valve
Displacement: 321 cc
Bore x Stroke: 68,0 × 44,1 mm
compression ratio: 11,2 : 1
maximum power: 30,9 kW (42,0 CV) at 10,750 rpm
maximum torque: 29,5 Nm (3,0 kg-m) a 9000 r.p.m.
Lubrication system: wet sump
Clutch type: Wet, Multi-disc
Ignition system: Electric
Start System: TCI
Transmission system: Constant take, 6 speed
final drive: Chain
Homologated consumption: 4.1L/100km
CO2 emission: 94 g/km
Carburetor: fuel injection
Chassis: Diamante
Pivot lead angle: 25° 00
Pivot advance: 95 mm
Front suspension system: telescopic forks
Rear suspension system: swing arm
front travel: 130 mm
Rear travel: 125 mm
Front brake: A Ø 298 mm hydraulic brake disc
Back brake: A Ø 220 mm hydraulic brake disc
Front tire: 110/70 R17M/C 54H, tubeless
Rear tire: 140/70 R17M/C 66H, tubeless
Total length: 2090 mm
Overall width: 730 mm
Total height: 1140 mm
Seat height: 780 mm
Distance between axis: 1380 mm
Minimum ground clearance: 160 mm
Weight (including full oil tank and fuel tank): 169Kg
Fuel tank capacity: 14L
Oil tank capacity: 2,50L
