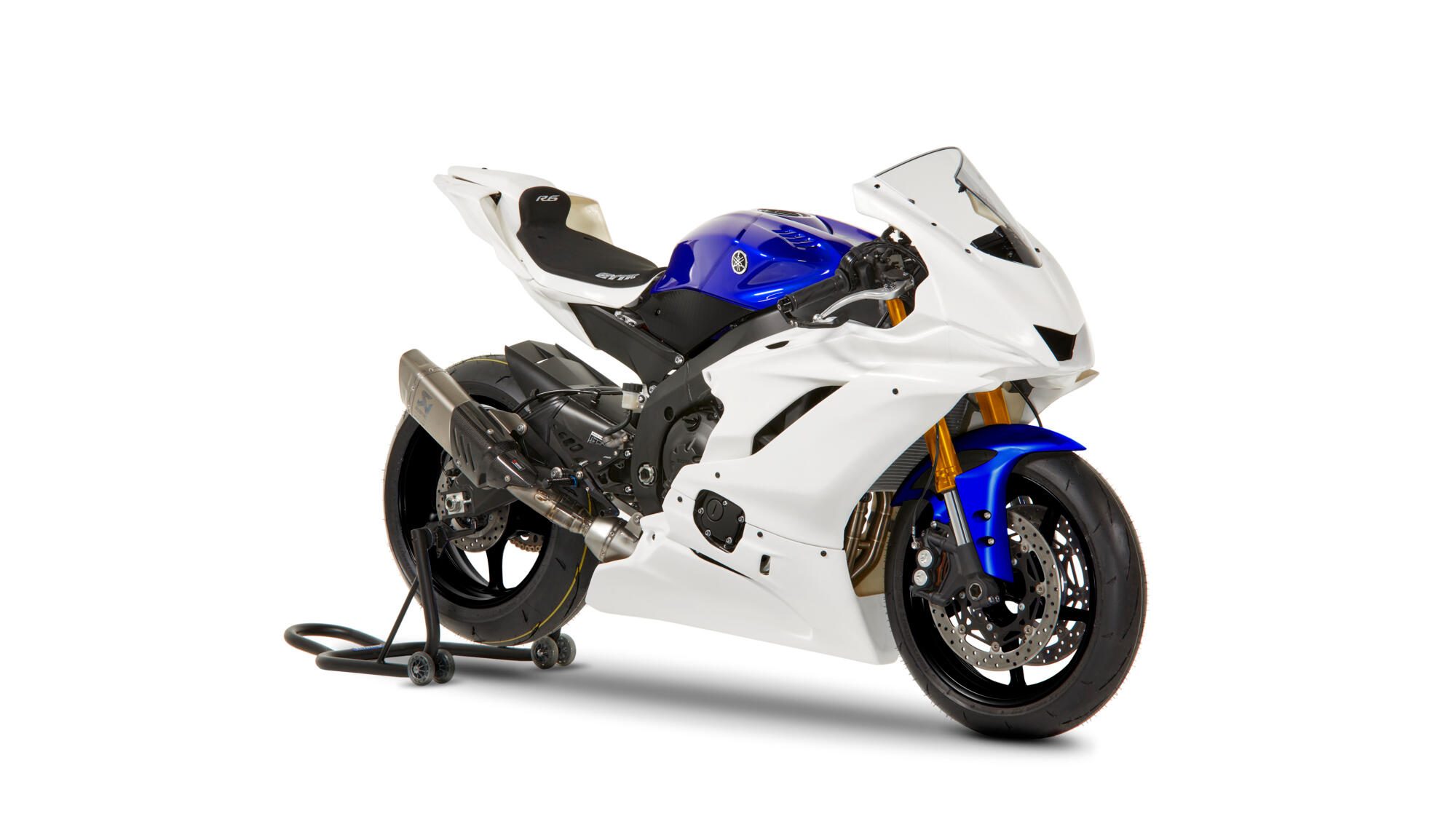

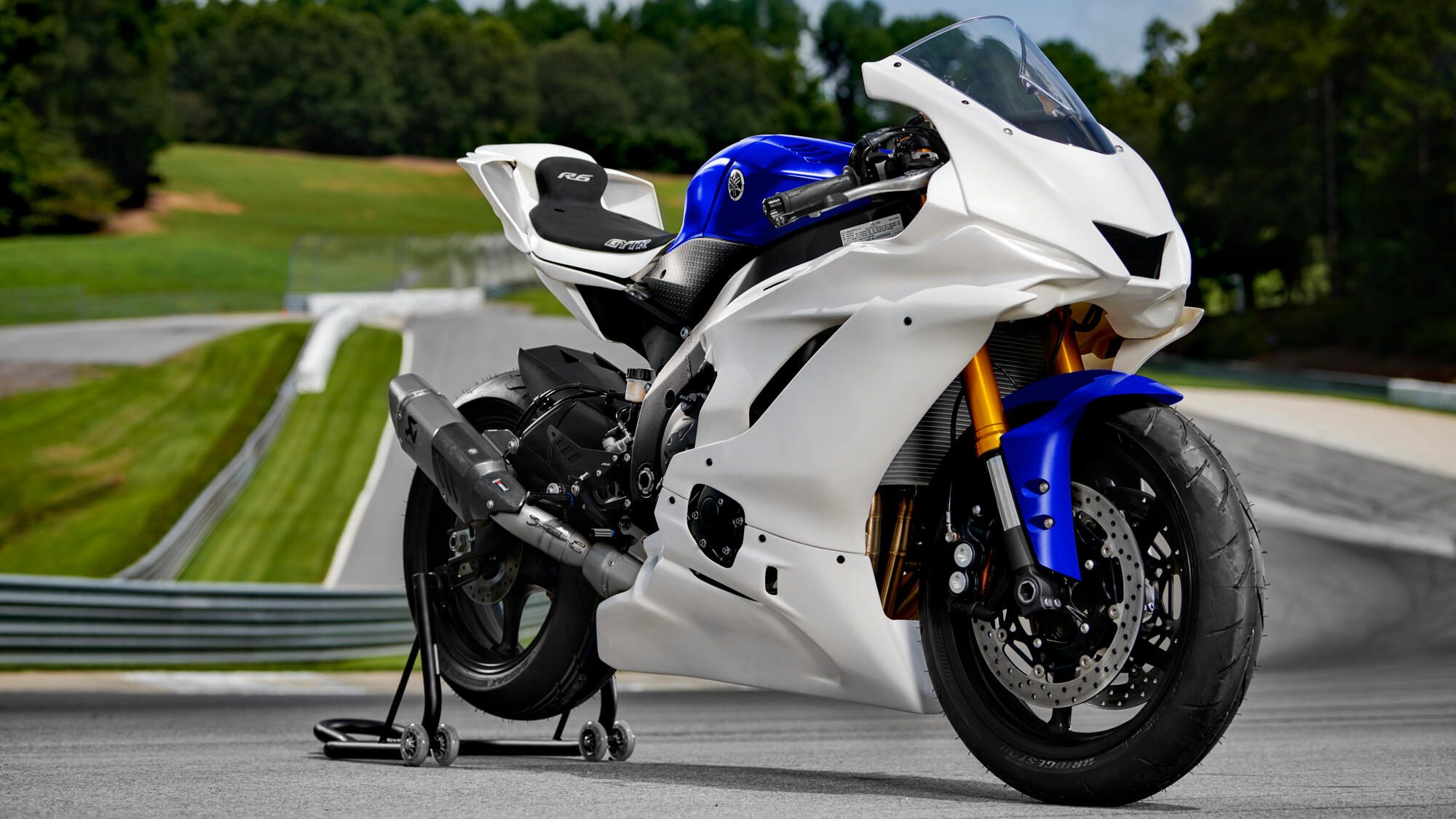

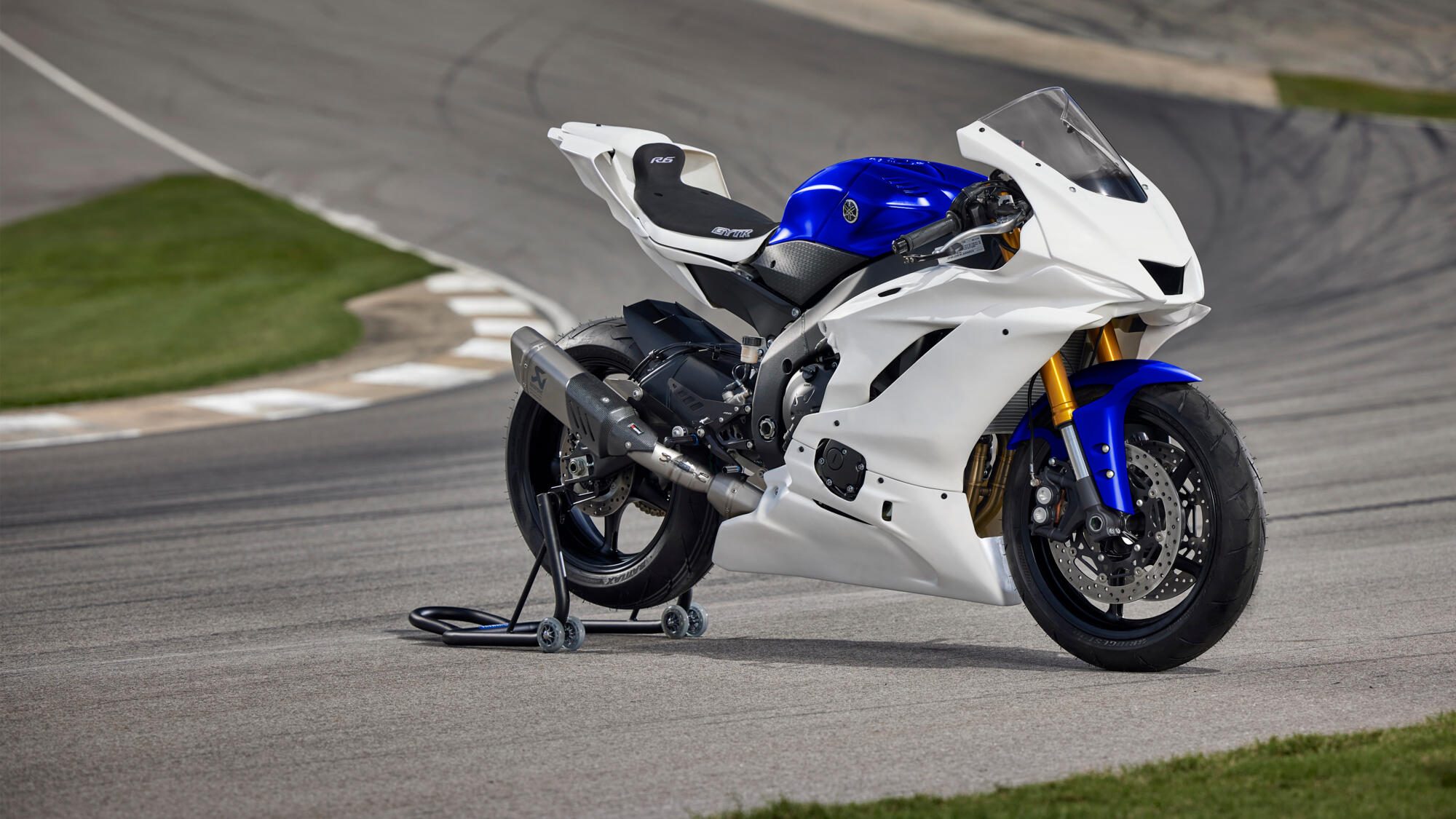

R6 GYTR
The Yamaha R6 has been dominating WorldSSP racing for years. The new R6 GYTR is about to make it even tougher for its rivals. Fitted with special race components from GYTR®, Yamaha’s tune-up specialists, it’s clear the R6 GYTR was built for the racetrack.
ⓘ Professional pilot with advanced technique in a closed area.
Take a look
- GYTR engine parts
- GYTR Electronics
- GYTR chassis parts
- GYTR transmission system
- GYTR bodywork
- High-performance, lightweight 599cc engine
- Compact Deltabox chassis and lightweight magnesium subframe
- KYB 43mm front fork
- lightweight aluminum fuel tank
- Available exclusively at GYTR PRO SHOPS
The ultimate competition supercar.
With its wide range of GYTR racing parts, the R6 GYTR is designed for the racetrack and built to take supercar racing performance to a new level. These special race parts include a race-spec ECU, AIS wiring harness and plug kit that optimize engine performance, plus the Akrapovič titanium exhaust pipe that reduces weight and improves performance for the 599 engine. cc at high revs.
The rest of the race equipment includes race sprockets, an adjustable race rear set with a reverse kit and a set of stainless steel brake lines. Available exclusively from Yamaha GYTR PRO SHOP dealers, the R6 GYTR comes equipped with a white fairing and can be fitted and customized at the dealer in your personal race colors (at additional cost).
Technical specifications
Engine type: 4-stroke, liquid-cooled, inclined parallel 4-cylinder forward, DOHC, 4 valves
Displacement: 599 cc
Bore x Stroke: 67.0 x 42.5mm
Compression ratio: 13,1 : 1
Maximum power: 87.1 kW (118.4 hp) at 14,500 rpm
Maximum torque: 61.7 Nm (6.3 kg-m) at 10,500 rpm.
Lubrication system: Wet sump
Clutch type: Wet, Multi-disc
Ignition system: TCI
Starting system: Electric
Drive system: Constant take, 6 speed
Final Drive: Chain
Approved consumption: 6.6 l/100 km
CO2 emission:154 g/km
Carburettor: fuel injection
Chassis: Diamond
Pivot lead angle: 24º
Pivot lead: 97 mm
Suspension system: front
Front suspension system: Telescopic fork, Ø 43 mm
Rear suspension system: link type suspension, swing arm
Front Travel: 120mm
Rear travel: 120mm
Front brake: Double hydraulic disc, Ø 320 mm
Back brake: A hydraulic disc, Ø 220 mm
Front tire: 120/70 ZR17M/C (58W), tubeless
Rear tyre: 180/55 ZR17M/C (73W), sin tubo
Total length: 2,040 mm
Total width: 695 mm
Total height: 1,150 mm
Seat height: 850 mm
Wheelbase: 1,375 mm
Minimum ground clearance: 130 mm
Weight (including full oil tank and fuel tank): 190 kg
Fuel tank capacity: 17 l
Oil tank capacity: 3,40 l
