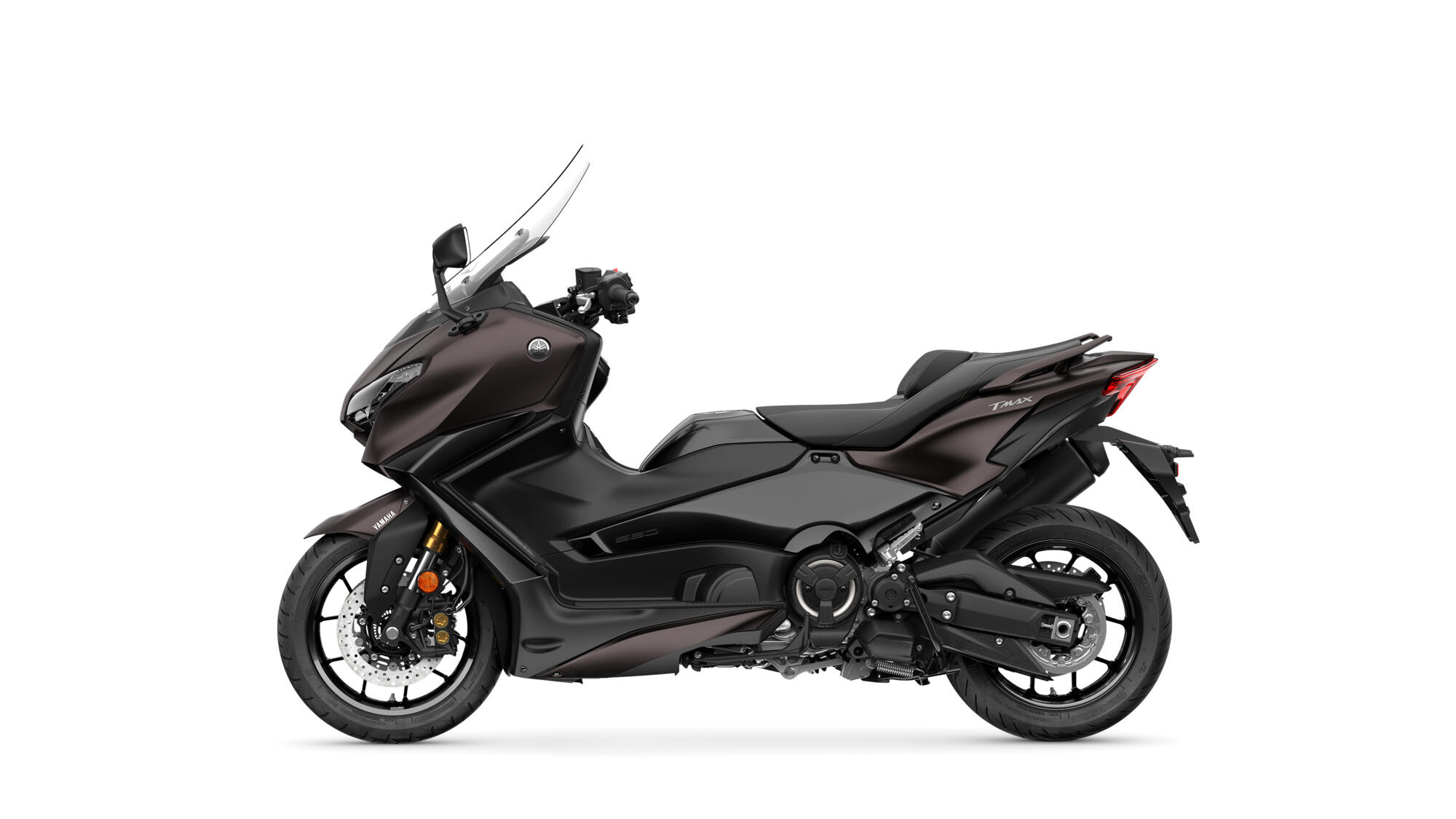

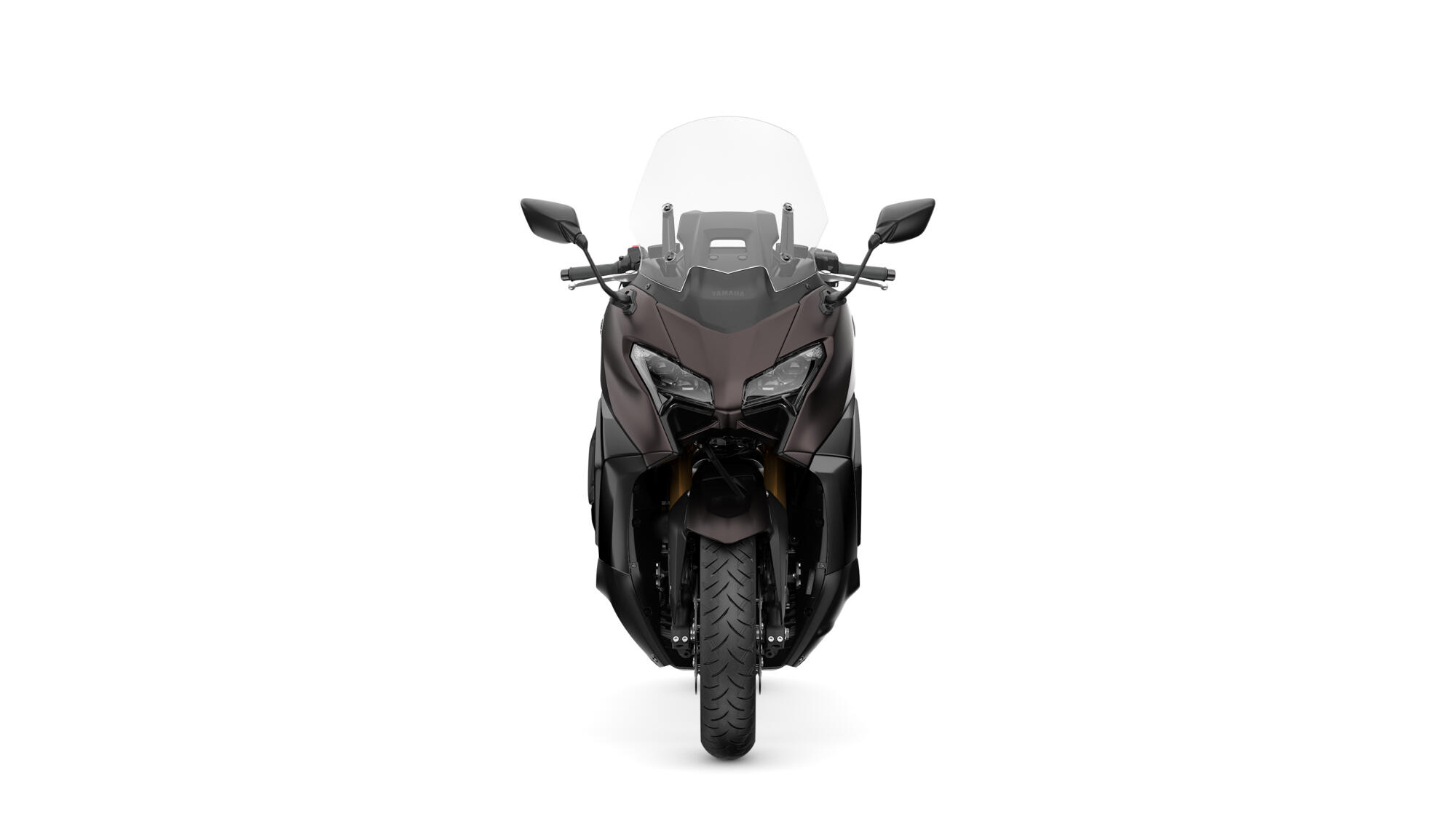

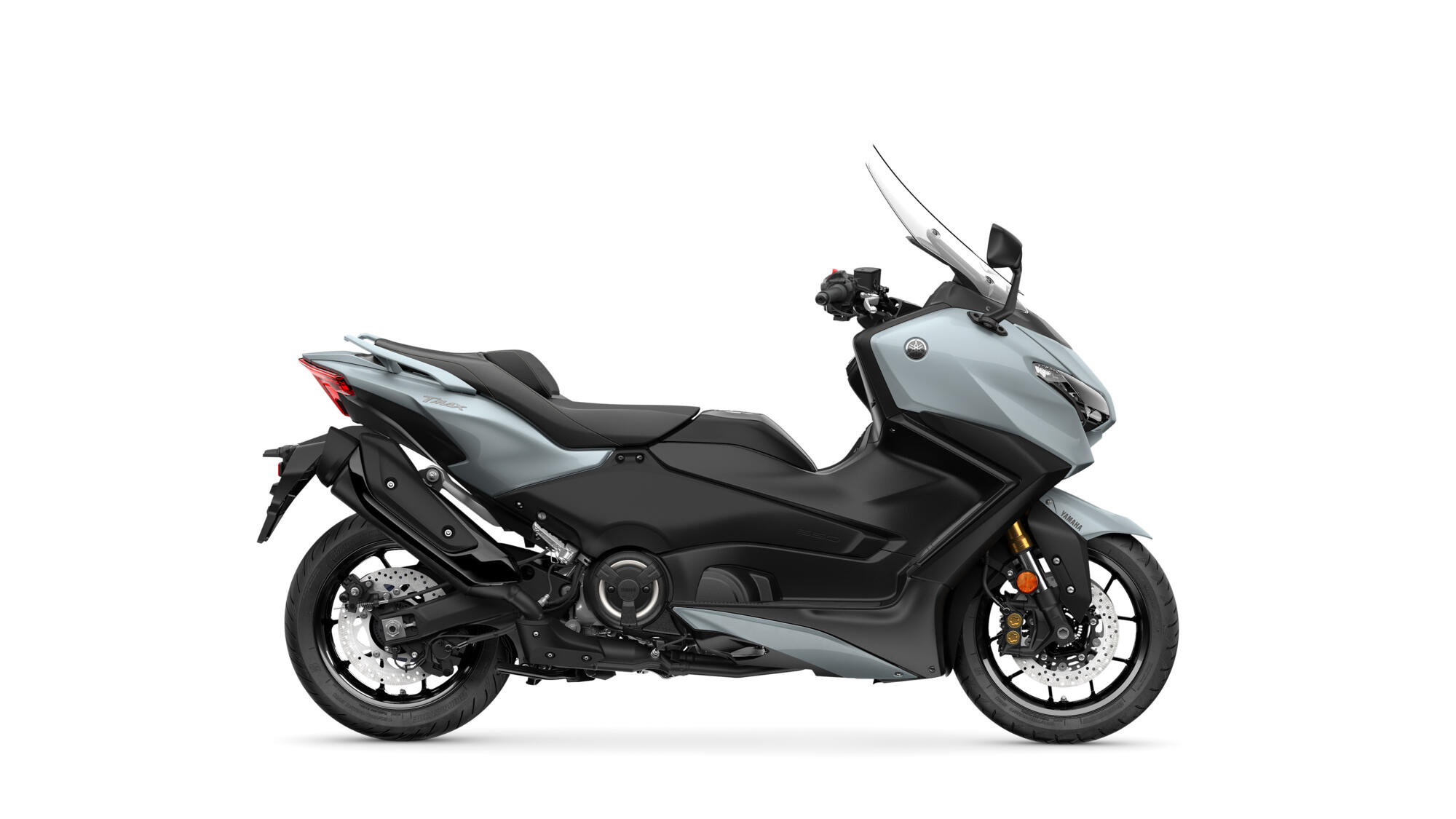

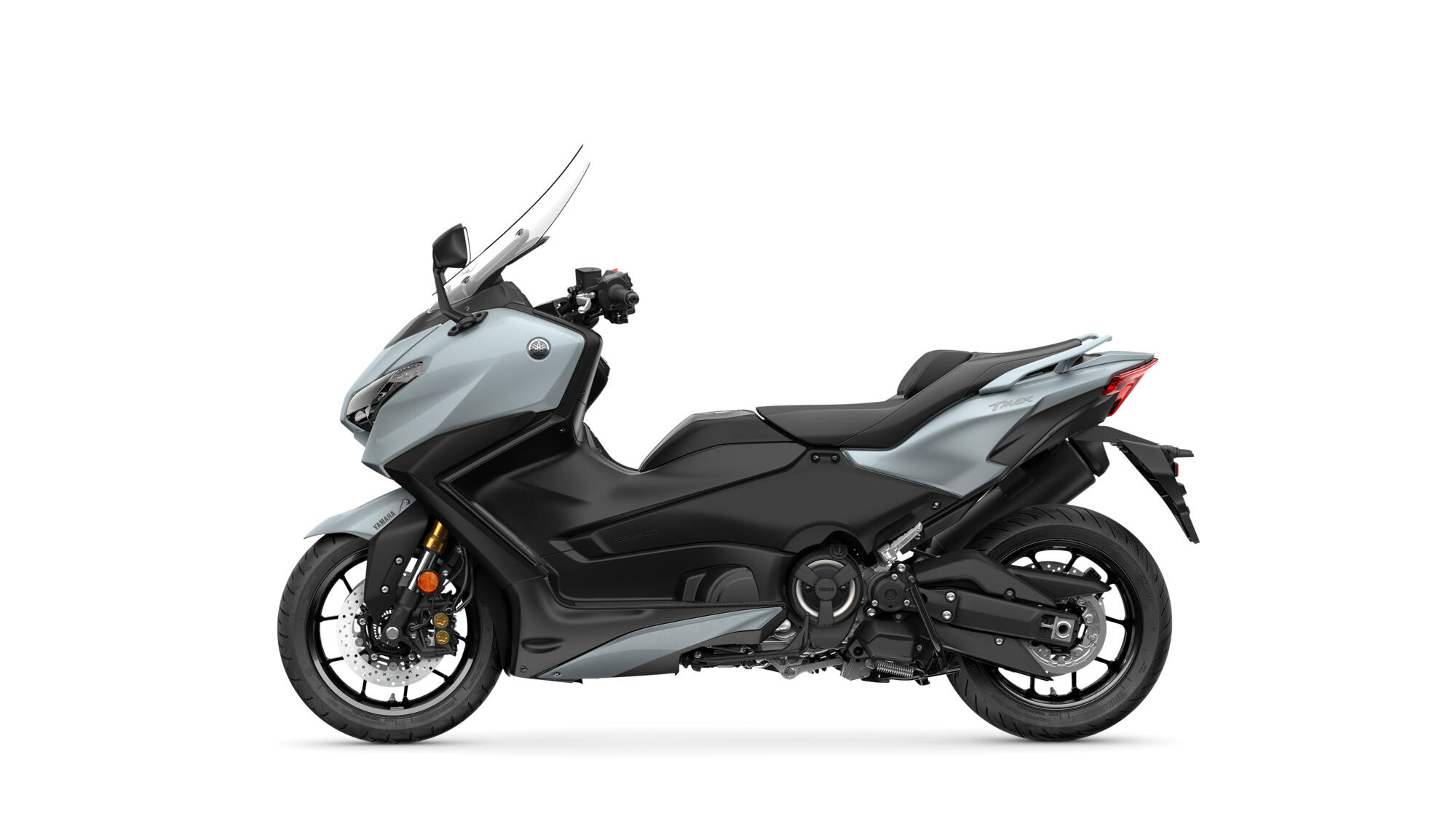

TMAX Tech MAX
TMAX Tech MAX is Yamaha’s premium large capacity Sport Scooter with all the features of the TMAX plus more, making it an ideal choice for riders who are looking for the ultimate multi-role high-performance model. Equipped with dynamic new dual-eye headlights and sleeker front bodywork, this iconic machine delivers a riding experience beyond compare.
Take a look
- Electrically adjustable screen
- Heated grips and heated seat
- Rider’s aids
- 560cc EURO5+ compliant engine
- Re ned body and headlight
- 7-inch TFT screen with Garmin Navigation
- Enhanced connectivity
- Comfortable ergonomics
- Machined wheels
- Lightweight aluminium frame
- Large storage space
Max is in details
Its powerful 560cc EURO5+ engine and refined automatic transmission make this Yamaha’s fastest and smoothest Sport Scooter. The motorcycle-type aluminium chassis and adjustable suspension provide precision handling. And for supreme comfort, the TMAX Tech MAX comes with a luxury heated seat, heated grips and an electronically adjustable screen.
For the highest degree of controllability, the TMAX Tech MAX benefits from best-in-class electronic rider aids, including a new Brake Control system as well as Cruise Control, Traction Control and 2-position D-MODE. And its connected 7-inch dash features free Garmin Navigation* to give you the best commuting, leisure and touring routes. (*Full map Garmin Navigation is available free of charge for eligible TMAX models but is not offered in all countries. Some navigation features are not available in all countries. )
Technical specifications
|
Engine type |
4-stroke, Liquid-cooled, DOHC, 4-valves, Parallel twin-cylinder |
|
Displacement |
562 cc |
|
Bore x stroke |
70.0 × 73.0 mm |
|
Compression ratio |
10.9 : 1 |
|
Maximum power |
35.0 kW @ 7,000 rpm |
|
Maximum torque |
55.0 Nm @ 5250 rpm |
|
Lubrication system |
Dry sump |
|
Fuel system |
Fuel Injection |
|
Ignition system |
TCI |
|
Starter system |
Electric |
|
Transmission system |
V-Belt Automatic |
|
Fuel consumption |
4.8 L/100 km |
|
CO2 emission |
112 g / km |
|
Front suspension system |
Telescopic forks |
|
Front travel |
120 mm |
|
Rear suspension system |
Swingarm |
|
Rear travel |
117 mm |
|
Front brake |
Hydraulic dual disc brake, Ø267 mm |
|
Rear brake |
Hydraulic single disc brake, Ø282 mm |
|
Front tyre |
120/70R15M/C 56H Tubeless |
|
Rear tyre |
160/60R15M/C 67H Tubeless |
|
Overall length |
2.195 mm |
|
Overall width |
780 mm |
|
Overall height |
1.415 mm – 1.525 mm(electric windscreen) |
|
Seat height |
800 mm |
|
Wheelbase |
1.575 mm |
|
Minimum ground clearance |
135 mm |
|
Wet weight |
221 kg |
|
Fuel tank capacity |
15 L |
|
Screen type |
TFT |
|
Screen size |
7-inch |
|
Smartphone Connectivity |
MyRide Link |
|
On-screen Navigation |
Garmin Motorize |
