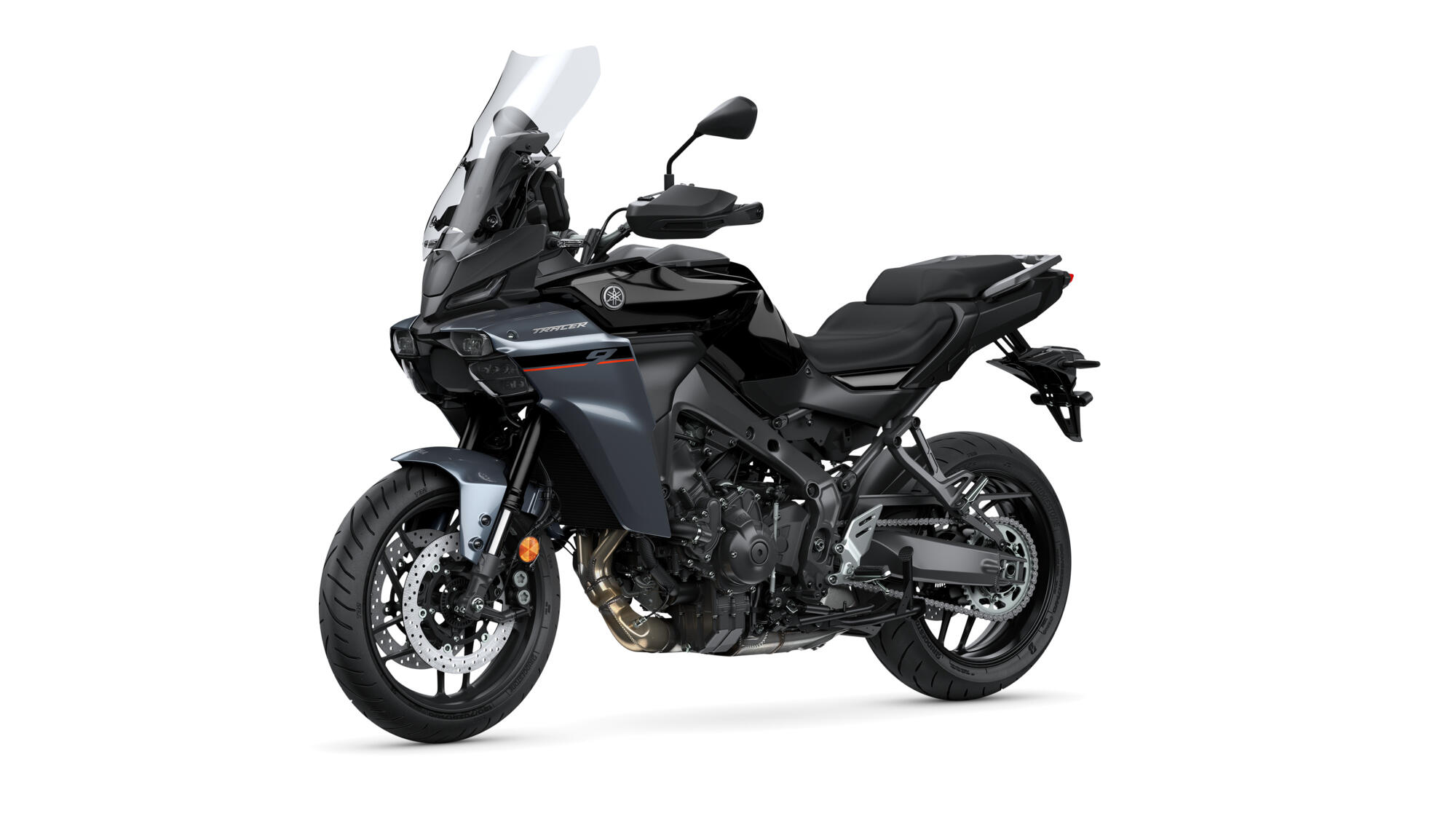

TRACER 9
Whether your dream destination is near or far, TRACER 9 is the most inspiring and exciting way to travel. Touring is so much more than just riding – and with its easy ergonomics, aerodynamic bodywork and generous luggage capacity, this motorcycle is designed to make sure that you and your partner can enjoy every minute of every journey.
Take a look
- Y-AMT: next-generation shifting* (on Y-AMT model)
- Heated handlebar grips, for whatever the weather
- More comfort, better weather protection with sleek new bodywork
- Award-winning 890cc CP3 platform
- Tailored to your needs with YRC ride modes
- No surprises at night – cornering LED headlamps
- Revised seating arrangement adds comfort to the tour
- Full colour 7″ TFT dashboard with three themes
- Ten way adjustable windscreen with 50mm of adjustment
- Cruise control and speed limiter as standard
- Fully adjustable KYB suspension front and rear
Turn up your emotions
Its economical 890cc high-torque CP3 engine has the flexibility to cruise at whatever speed feels best – and with the ability to ride over 350 km between refills you can cover huge distances in a single day. And when you feel in the mood to push harder the TRACER 9 has the power and agility to get your adrenaline flowing on Europe’s legendary mountain roads.
Wherever you travel you can always depend on the TRACER 9’s smart technology to make every ride more exhilarating. Its 6-axis IMU governs the lean-sensitive electronic rider aids that give you control and confidence in varying surface and weather conditions – while twin TFT metres and full LED lighting underline this versatile Sport Tourer’s premium specification.
Discover the full range of Yamaha Sport T ouring motorcycles.
Technical specifications
|
Engine type |
4-stroke, Liquid-cooled, DOHC, 4-valves, 3-cylinder |
|
Displacement |
890cc |
|
Bore x stroke |
78 x 62.1 mm |
|
Compression ratio |
11,5 : 1 |
|
Maximum power |
87.5 kW (119 PS) @ 10,000 rpm |
|
Maximum torque |
93 Nm (9.5 kg-m) @ 7,000 rpm |
|
Lubrication system |
Wet sump |
|
Clutch type |
Wet, Multiple Disc |
|
Ignition system |
TCI |
|
Starter system |
Electric |
|
Transmission system |
Constant Mesh, 6-speed |
|
Final transmission |
Chain |
|
Fuel consumption |
5 L/100 km |
|
CO2 emission |
116 g / km |
|
Fuel system |
Fuel Injection |
|
Frame |
Diamond |
|
Caster angle |
24°25′ |
|
Trail |
106 mm |
|
Front suspension system |
Telescopic fork |
|
Rear suspension system |
(Link type suspension), Swingarm |
|
Front travel |
130mm |
|
Rear travel |
131 mm |
|
Front brake |
Hydraulic dual disc brake, Ø 298 mm |
|
Rear brake |
Hydraulic single disc brake, Ø 267 mm |
|
Front tyre |
120/70ZR17M/C (58W) Tubeless |
|
Rear tyre |
180/55ZR17M/C (73W) Tubeless |
|
Overall length |
2,175 mm |
|
Overall width |
900 mm |
|
Overall height |
1.460 mm – 1.505 mm |
|
Seat height |
845 mm – 860 mm |
|
Wheel base |
1.500 mm |
|
Minimum ground clearance |
135 mm |
|
Wet weight (including full oil and fuel tank) |
Standard 6-speed manual: 219 kg; Y-AMT: 224 kg |
|
Fuel tank capacity |
19 L |
|
Oil tank capacity |
3.5 L |
