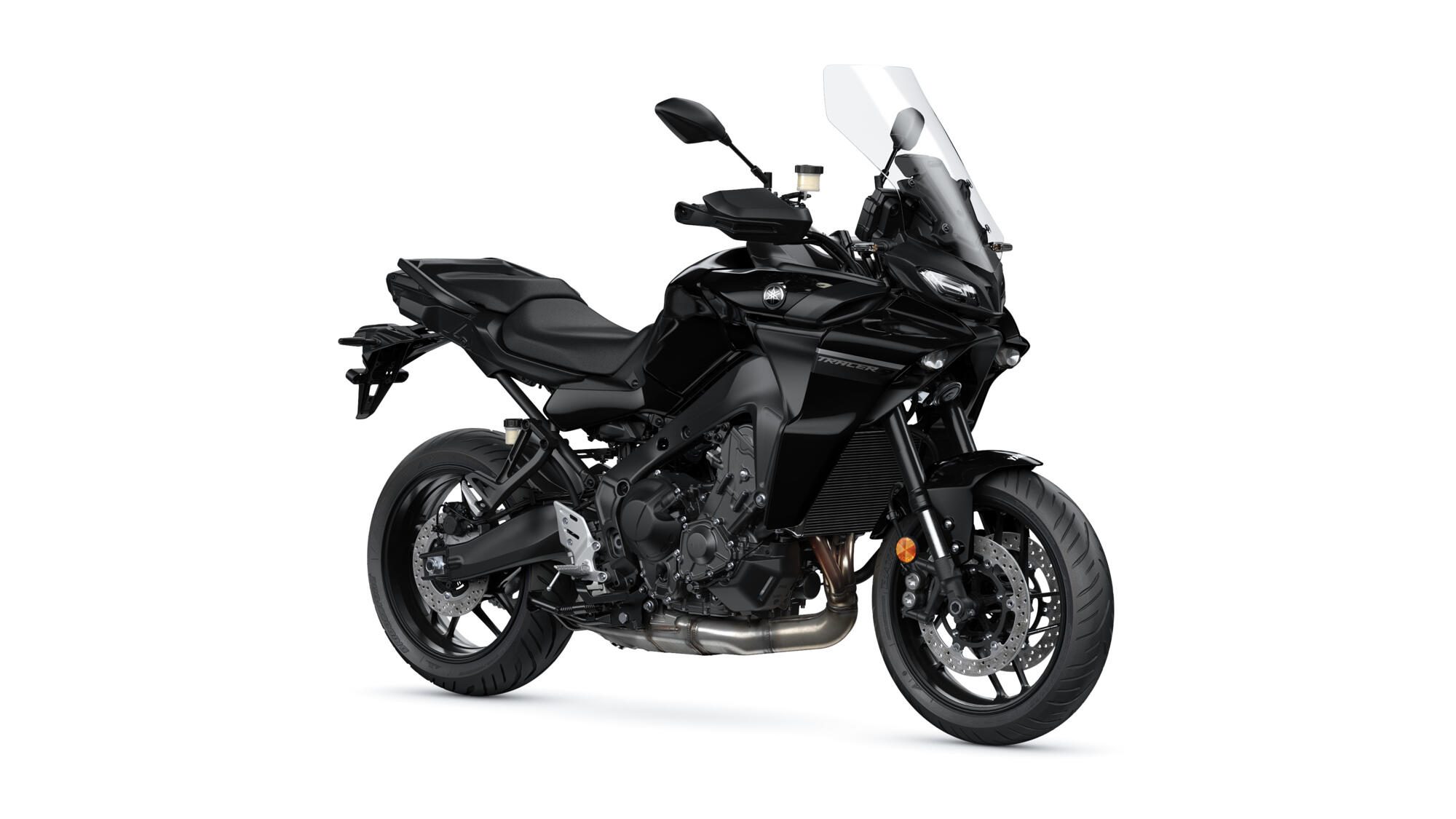

TRACER 9
The TRACER 9 is the most inspiring and exciting way to travel, whether your destination is near or far. Touring is about so much more than just riding, and with its friendly ergonomics, aerodynamic bodywork and generous luggage space, this motorcycle is designed so you and your passenger can enjoy every minute of every ride.
Take a look
- 890cc EU5 CP3 engine
- CF lightweight cast aluminum frame
- Total luggage capacity for three suitcases
- 6-axis IMU plus tilt-sensitive driver aids
- State-of-the-art design and style
- Full LED lighting
- Twin 3.5″ TFT gauges
- SpinForged lightweight wheels
- New adjustable suspension
- 2 position adjustable seat
- Aerodynamic fairing
- Cruise control system
Intensify your emotions
Its economical, high-torque 890cc CP3 engine has the flexibility to ride at whatever speed you see fit. In addition, with the ability to travel more than 350 km without refueling you can cover long distances in a single day. And when you feel like going even further, TRACER 9 has the power and agility to unleash your adrenaline on Europe’s twisty mountain roads.
Wherever you go, you can always rely on the intelligent technology in the TRACER 9 to make every ride more exciting. The 6-axis IMU controls bank-sensitive electronic pilot assistance systems that offer control and confidence on different surfaces and weather conditions. For its part, the double TFT screen and full LED lighting enhance the high-end equipment of this versatile Sport Tourer.
Technical specifications
Engine type: Liquid-cooled, 4-stroke, 4-valve, 3-cylinder, DOHC
Displacement: 890cc
Bore x Stroke: 78.0×62.1mm
Compression ratio: 11.5:1
Maximum power: 87.5 kW (119 PS) at 10,000 rpm
Maximum torque: 93.0 Nm (9.5 kg-m) at 7000rpm
Lubrication system: Wet sump
Clutch type: Wet, Multi-disc
Ignition system: TCI
Starting system: Electric
Drive system: Constant take, 6-speed
Final Drive: Chain
Approved consumption: 5.0L/100km
CO2 emission: 116g/km
Carburetor: Electronic fuel injection
Chassis: Diamond
Pivot lead angle: 25° 00′
Pivot advance: 108mm
Front suspension system: Telescopic fork
Rear suspension system: Swing arm
Front Travel: 130mm
Rear travel: 137mm
Front brake: Hydraulic double disc brake, Ø 298 mm
Rear brake: Hydraulic single disc brake, Ø 245 mm
Front tire: 120/70Z R17 M/C (58W) (without tube)
Rear tire: 180/55Z R17 M/C (73W) (without tube)
Total length: 2175mm
Total width: 885mm
Total height: 1430mm-1470mm
Seat height: 810mm-825mm
Distance between axis: 1500mm
Minimum ground clearance: 135mm
Weight (including full oil tank and fuel tank): 213kg
Fuel tank capacity: 18.7L
Oil tank capacity: 3.5L
