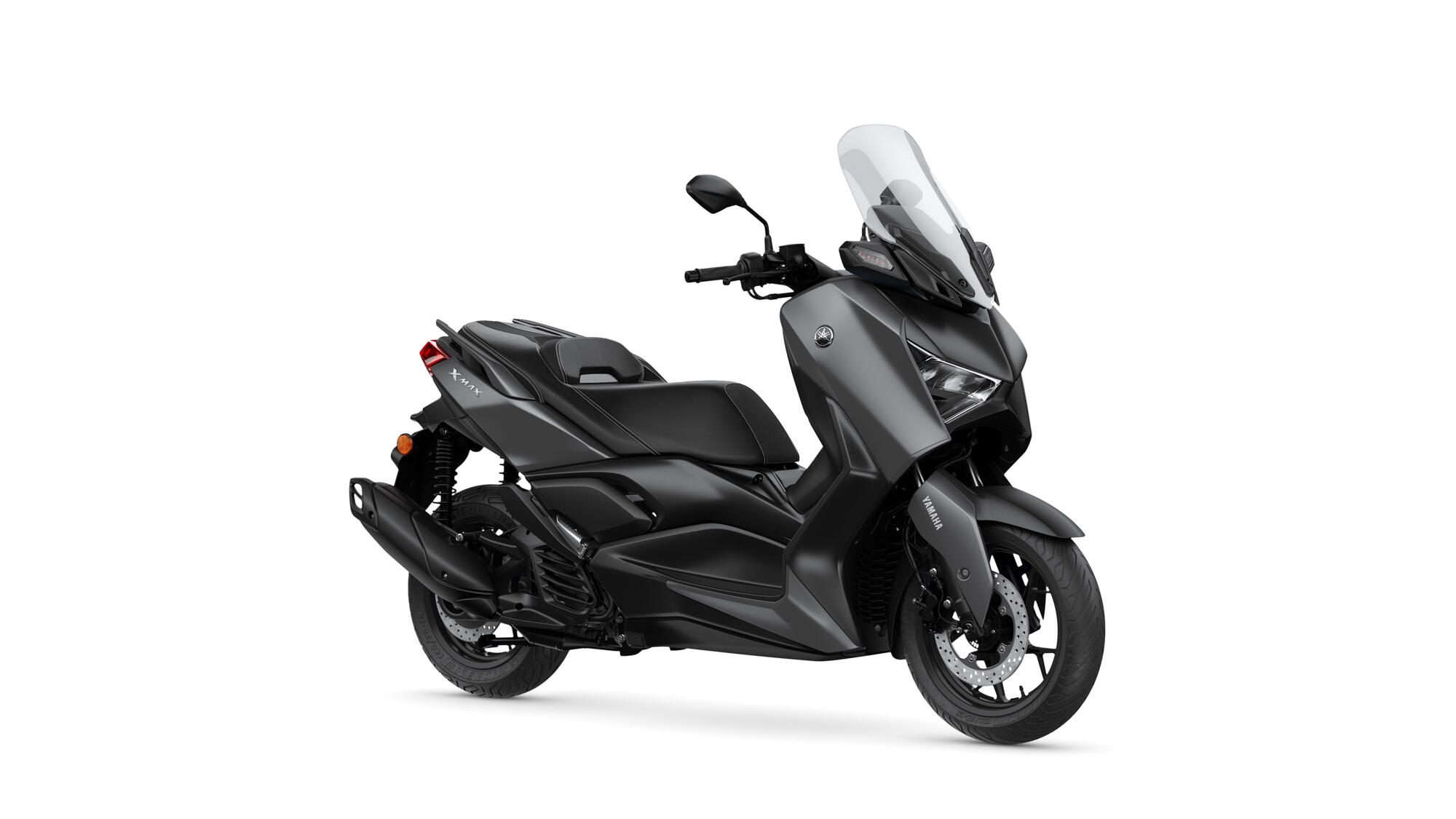

XMAX 125

With more than 200,000 units sold, the XMAX 125 is one of the most popular sports scooters in Europe. And it’s easy to see why so many people decide to buy this top-of-the-line 125cc Yamaha street model. The XMAX 125 possesses an attractive combination of sports performance, style, everyday functionality and ease of use that makes it an ideal and affordable option for your daily commute.

Take a look

  • 4.3-inch LCD instruments
  • Smartphone connectivity
  • Dynamic body design
  • Radical X-shaped headlight
  • New shape seat with easy access
  • High-mounted front flashers
  • Full LED lighting
  • EURO5 Blue Core 125cc engine
  • Space to store two full-face helmets
  • Traction Control System (TCS)
  • Keyless ignition via Smart Key
  • Adjustable screen and handlebar

Follow the MAX

And with this latest version, there’s even more reason to choose this B*-licensed sport scooter from Yamaha. By downloading the free MyRide app, the smart new 4.3-inch LCD instrumentation lets you enjoy smartphone connectivity. In this way, it will be very easy for you to stay in touch and see the calls and messages you receive on the dashboard. (*There may be limitations and restrictions by country based on applicable laws. In addition, Yamaha recommends that all users take a motorcycle riding course before riding any two or three wheeled vehicle.)

The XMAX 125 also has a new body design that gives it a very distinctive new dynamic look. This new sporty styling has been taken to a new level with the futuristic X – shaped LED headlight and redesigned boomerang – shaped side covers . In addition, driving is now more comfortable thanks to a new ergonomic seat that makes it easier to reach the ground with your feet.

Technical specifications

Engine type: 4-stroke, Liquid-cooled, SOHC, 4-valve, Single cylinder


Displacement: 125cc


Bore x Stroke: 52.0×58.7mm


Compression ratio: 11.2:1


Maximum power: 9.0kW @ 8000rpm


Maximum torque: 11.2Nm at 6000rpm


Lubrication system: Wet sump


Fuel system: Fuel injection


Ignition system: TC|


Starting system: Electric


Transmission system: Automatic V-belt


Approved consumption: Start & Stop activated: 2.3L/100km, with Start & Stop deactivated: 2.4L/100km


CO2 emission:Start & Stop activated: 54 g/km, with Start & Stop deactivated: 56 g/km

Front suspension system: Telescopic forks


Front travel: 110mm


Rear suspension system: Oscillating unit


Rear travel: 90mm


Front brake: Hydraulic single disc brake, Ø 267 mm


Rear brake: A Ø 245 mm hydraulic disc (ABS)


Front tire: 120/70-15


Rear tire: 140/70-14

Total length: 2180mm


Total width: 795mm


Total height: 1410mm -1460mm (adjustable windscreen)


Seat height: 800mm


Distance between axis: 1570 mm


Minimum ground clearance: 140mm


Weight (including full oil tank and fuel tank): 167kg


Fuel tank capacity: 13.2L
