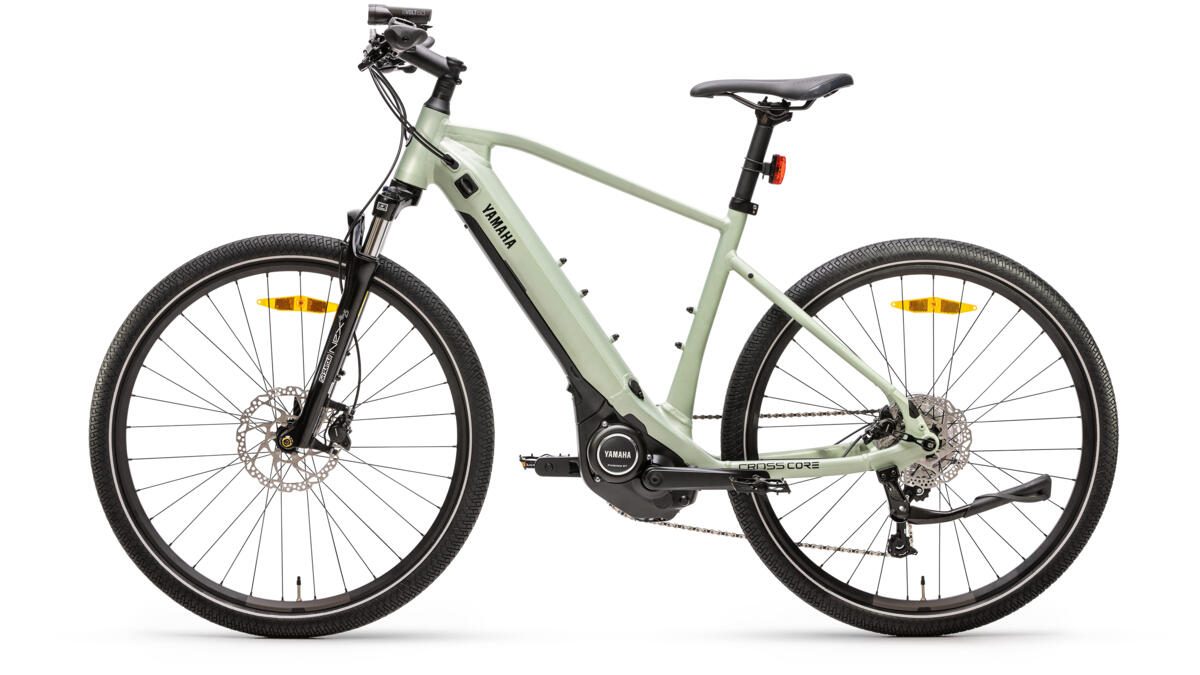

CrossCore RC

CrossCore RC is a versatile, adaptable and accessible electric bike that’s ready to take on whatever the day throws at you. It has been specifically designed for all types of situations, from urban commuting to relaxed leisure walks and physical training. And with its zero emissions and low running costs, it’s perfect for many reasons.

Take a look

  • PWseries-ST drive unit
  • natural ergonomics
  • adaptable chassis
  • Optional components for trekking
  • Display interface A
  • auto assist mode
  • Zero Cadence Technology
  • 3 sizes, 2 colours
Technical specifications

For every day and for everyone.

At the heart of this attractive electric bike is Yamaha’s PW-ST drive unit, one of the quietest and most responsive motors in its class. In addition to smooth, quiet performance, this intelligent motor uses sensors to monitor the way you drive and adjust electric assistance to give you the most natural and enjoyable drive.

To achieve a relaxed and upright riding position, the durable and lightweight frame is equipped with flat handlebars, and the front fork allows 63mm of suspension movement to soak up bumps. The simple interface of the Display A screen makes it easy to change the riding mode and check the battery status. And if you want to personalise your CrossCore RC, there is a wide range of trekking accessories.

Technical specifications

Overall weight: 23.9kg

Wheel size: 700C

e-Bike Type: pedaling assistance

Drive Unit: Yamaha PWSeries ST 3-bolt Mount

Battery: Yamaha Lithium Ion 500Wh, 36V, 13.4Ah

Display: Screen Display A

Maximum assist speed: 25km/h

Technology: Yamaha Hydroformed Aluminum. Integrated battery. Water bottle boss. Tapered Headtube. Internal shift/brake hose routing. Rack/Fender compatible.

Fork: SR Suntour NEX E25. 63mm Travel. 12x100mm Thru-Axle

Rear suspension: N/A

Address: Integrated bearing with 30mm of spacers

Handlebar: Alloy, 31.8mm clamp, width 640mm

Power: 31.8 clamp dia. 6 deg rise 80mm

Cuffs: Two-tone ergonomic locking

Saddle: Yamaha Urban Comfort Cro-Mo Rail

Seat post: 30.9 dia. Length: 345mm (L, M), 295 (S)

Brakes: Shimano BR-MT200

Shift lever: Shimano M2010 9-speed

Rear derailleur: Shimano M3100 SGS

Connecting rods: Square Taper Spindle Length S-165mm, M and L – 170mm

Dish: 44t alloy

Chain: KMC e11 118 links

Cassette: SHIMANO HG400 9-speed 11-13-15-17-20-23-26-30-36T

Wheels: Dual Channel Welded Pin w/ Eyeleted SpokeFront: 12x100mm Quick-Release Thru-Axle (QRTA) Rear: 12x142mm QRTA with integrated speed sensor

Deck: CST C-1996 27.5 x 2.00
