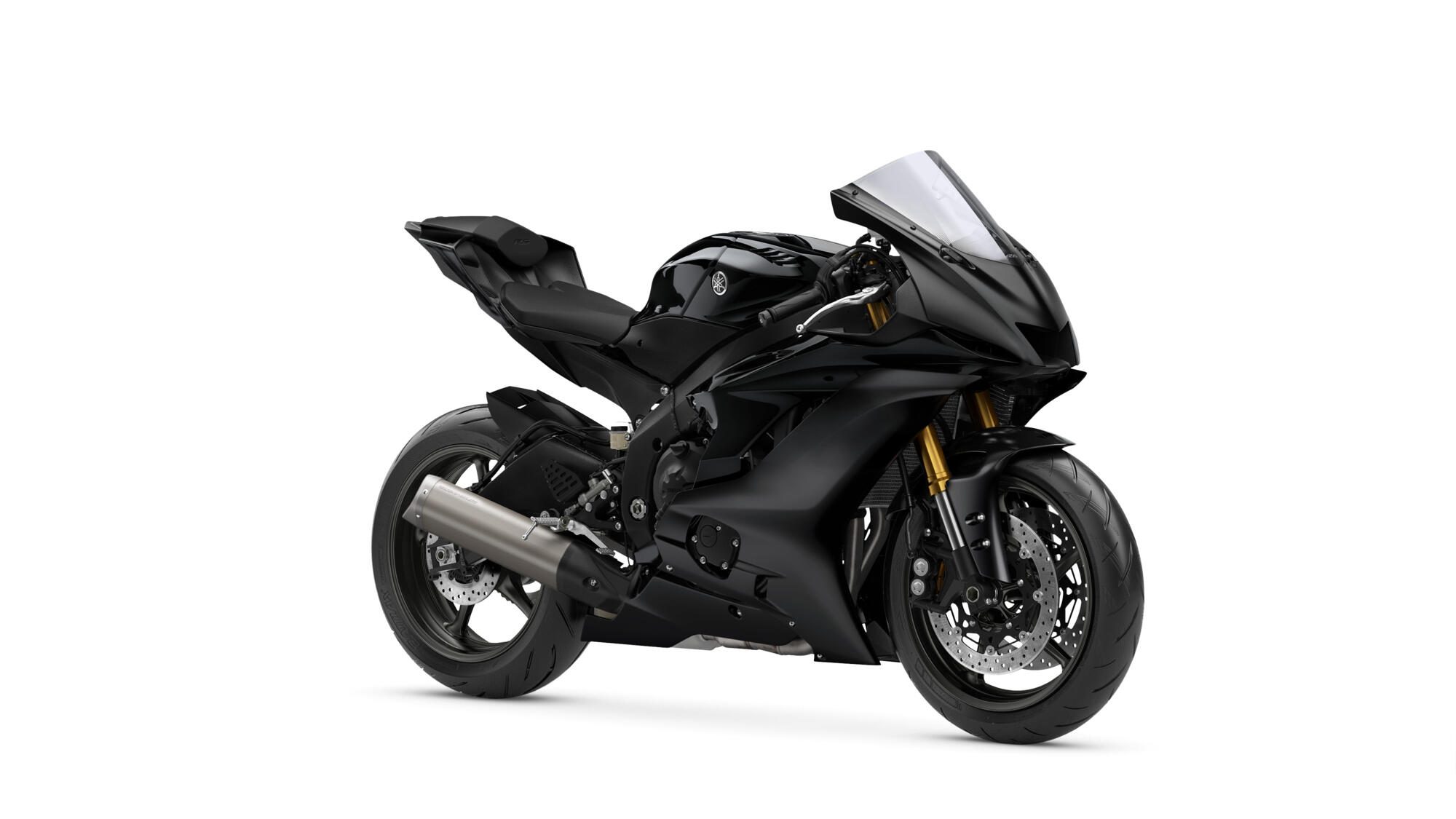

R6 RACE
This is the ultimate 600cc supersport that has been dominating WorldSSP racing for years. Like all bikes in the R range, it has been uncompromisingly developed to achieve the highest levels of performance. And to make it easier for you and your team to prepare for the racing season, the track-only R6 RACE is now delivered race-ready.
Take a look
- Competition Specs
- Lightweight 599cc high-output engine
- Aerodynamic bodywork developed for competition
- Sophisticated electronic control systems
- High performance R1 type front fork
- Race-developed ergonomics
- Compact Deltabox chassis and lightweight magnesium subframe
- Class-leading R1-type front brakes
- Lightweight aluminum fuel tank
Exclusive to Mundo R.
The R6 RACE is equipped with an aggressive bodywork bearing the iconic M-shaped front air intake. The bodywork is inspired by the M1 factory MotoGP® and offers maximum aerodynamic efficiency to reduce lap times, while the Compact Deltabox chassis, sculpted aluminum fuel tank and slim magnesium subframe keep you in close contact with the bike on the straightaway.
Available in Tech Black, the more stripped-down R6 RACE is the perfect bike for everyone, from track racers to ambitious racers looking to make a name for themselves with their first big win. With numerous WorldSSP titles to its credit, the lightweight 599cc inline-four engine has proven to be the fastest in the business, and with Yamaha’s Microprocessor Controlled Intake (YCC-I) and controlled throttle By Yamaha Microprocessor (YCC-T), plus a slipper clutch, close ratio 6-speed gearbox and Quickshift Gearbox (QSS), the track-engineered R6 RACE gives you the ultimate level of control.
Technical specifications
Engine type: 4-stroke, liquid-cooled, forward-inclined parallel 4-cylinder, DOHC, 4-valve
Displacement: 599cc
Bore x Stroke: 67.0 x 42.5mm
Compression ratio: 13.1:1
Maximum power: 87.1 kW (118.4 hp) at 14,500 rpm
Maximum torque: 61.7 Nm (6.3 kg-m) @ 10,500rpm
Lubrication system: Wet sump
Clutch type: Wet, Multi-disc
Ignition system: TCI
Starting system: Electric
Drive system: Constant take, 6-speed
Final Drive: Chain
Approved consumption: 6.6l/100 km
CO2 emission: 154g/km
Carburettor: Fuel injection
Chassis: Diamond
Advance angle of the pivot: 24th
Pivot lead: 97mm
Front suspension system: Telescopic fork, Ø 43 mm
Rear suspension system: Link type suspension, swing arm
Rear suspension system: Link type suspension, swing arm
Front Travel: 120mm
Rear travel: 120mm
Front brake: Double hydraulic disc, Ø 320 mm
Rear brake: One hydraulic brake disc, Ø 220 mm
Front tire: 120/70 ZR17M/C (58W), tubeless
Rear tyre: 180/55 ZR17M/C (73W), tubeless
Total length: 1,990mm
Total width: 695mm
Total height: 1,150mm
Seat height: 850mm
Wheelbase: 1,375mm
Minimum ground clearance: 130mm
Weight (including full oil tank and fuel tank): 185kg
Fuel tank capacity: 17l
Oil tank capacity: 4.9l
