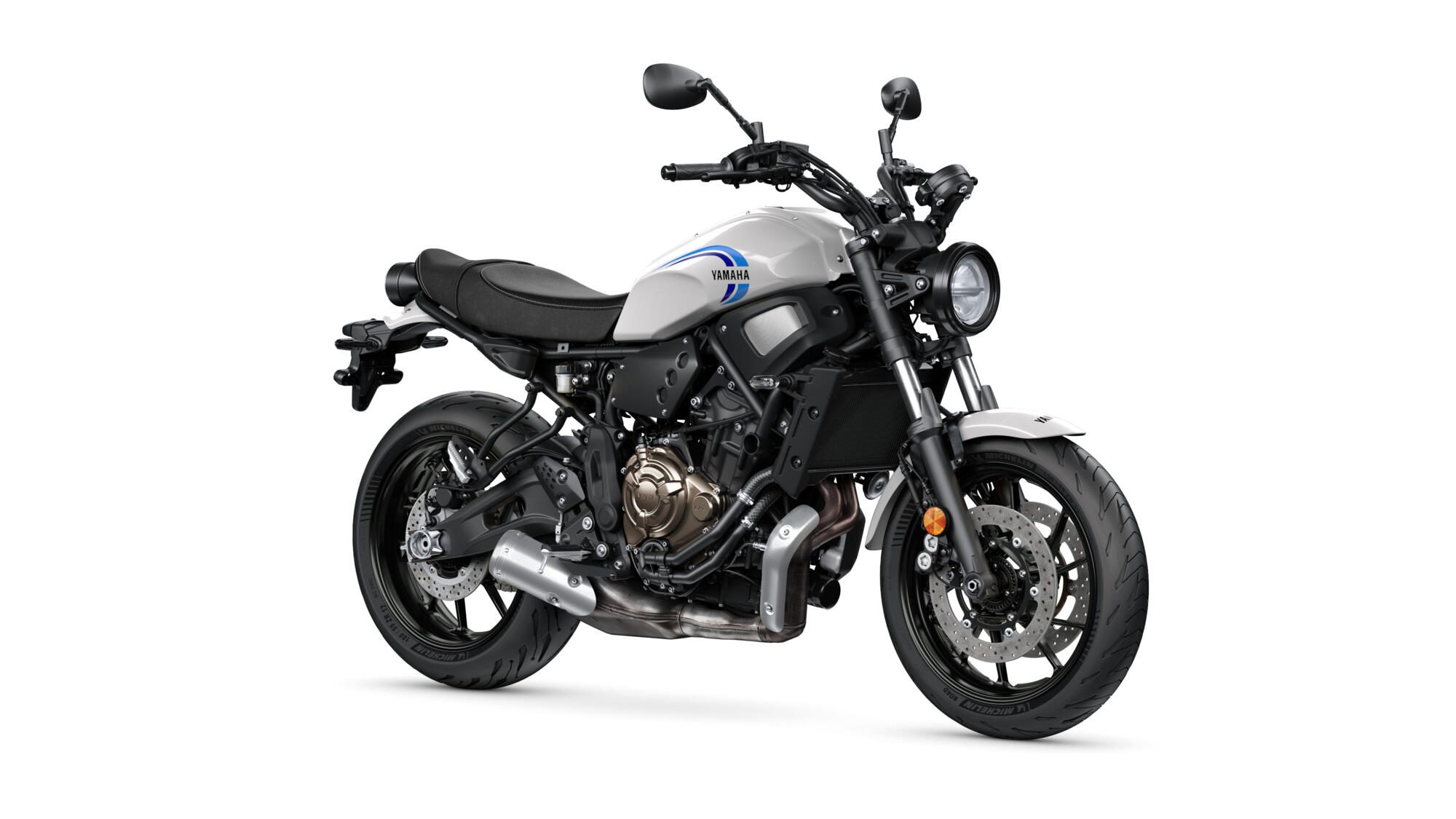

XSR700
The XSR700 is a genuinely vintage looking machine that has earned its stripes on the road. The heart of the machine is its versatility. The XSR700 is a motorcycle that adapts to all riding styles. This machine is suited to everything from leisurely rides to enjoying attacking corners.
Take a look
- 35 kW A2 version also available
- Distinctive LED lighting from the SXR range
- New cockpit layout with integrated headlight brackets
- Evolved design details
- High torque 690cc CP2 EU5 engine
- Light and slim tubular backbone chassis
- Designed with maximum riding pleasure in mind
- Confidence-inspiring riding experience
- Colors and graphics inspired by Yamaha’s past
- Excellent fuel consumption
Born for the challenge
It is an accessible motorcycle, enjoyable for both new and experienced riders. The two-piece chassis, the shape of the tank and the design of the seat continue to be key factors in the XSR700, as they are what guarantee that ease of customization that characterizes the bike.
The character of the XSR700 is defined by the sublime combination of a light and agile chassis with a fun and torquey CP2 engine. This bike is super agile and easy to ride in any environment. You will always have fun with it, whether it is on winding roads full of curves or in the busy traffic of the city.
Technical specifications
Engine type: CP2, Two-cylinder, 4-valve, 4-stroke, Liquid-cooled, DOHC
Displacement: 689cc
Bore x Stroke: 80.0×68.6mm
Compression ratio: 11.5:1
Maximum power: 54.0kW (73.4hp)/8750r/min
Limited power version: 35.0 kW (47.6 PS) @ 7,750 rpm
Maximum torque: 67.0 Nm (6.8kgf・m)/6500r/min
Lubrication system: Wet sump
Clutch type: Wet, Multi-disc
Ignition system: Electronic ignition (TCI)
Starting system: Electronic ignition (TCI)
Drive system: Constant take, 6-speed
Final Drive: Chain
Approved consumption: 4.3L/100km
CO2 emission: 100g/km
Carburetor: Electronic fuel injection
Chassis: Diamond
Pivot lead angle: 24°30′
Pivot advance: 90mm
Front suspension system: Telescopic fork
Rear suspension system: Swing arm, (Link Type Suspension)
Front Travel: 130mm
Rear travel: 130mm
Front brake: 298mm
Rear brake: 245mm
Front tire: 120/70 ZR 17M/C (58W) tubeless
Rear tire: 180/55 ZR 17M/C (73W) tubeless
Total length: 2,075mm
Total width: 820mm
Total height: 1,130mm
Seat height: 835mm
Distance between axis: 1,405mm
Minimum ground clearance: 140mm
Weight (including full oil tank and fuel tank): 188kg
Fuel tank capacity: 14L
Oil tank capacity: 3.00L
