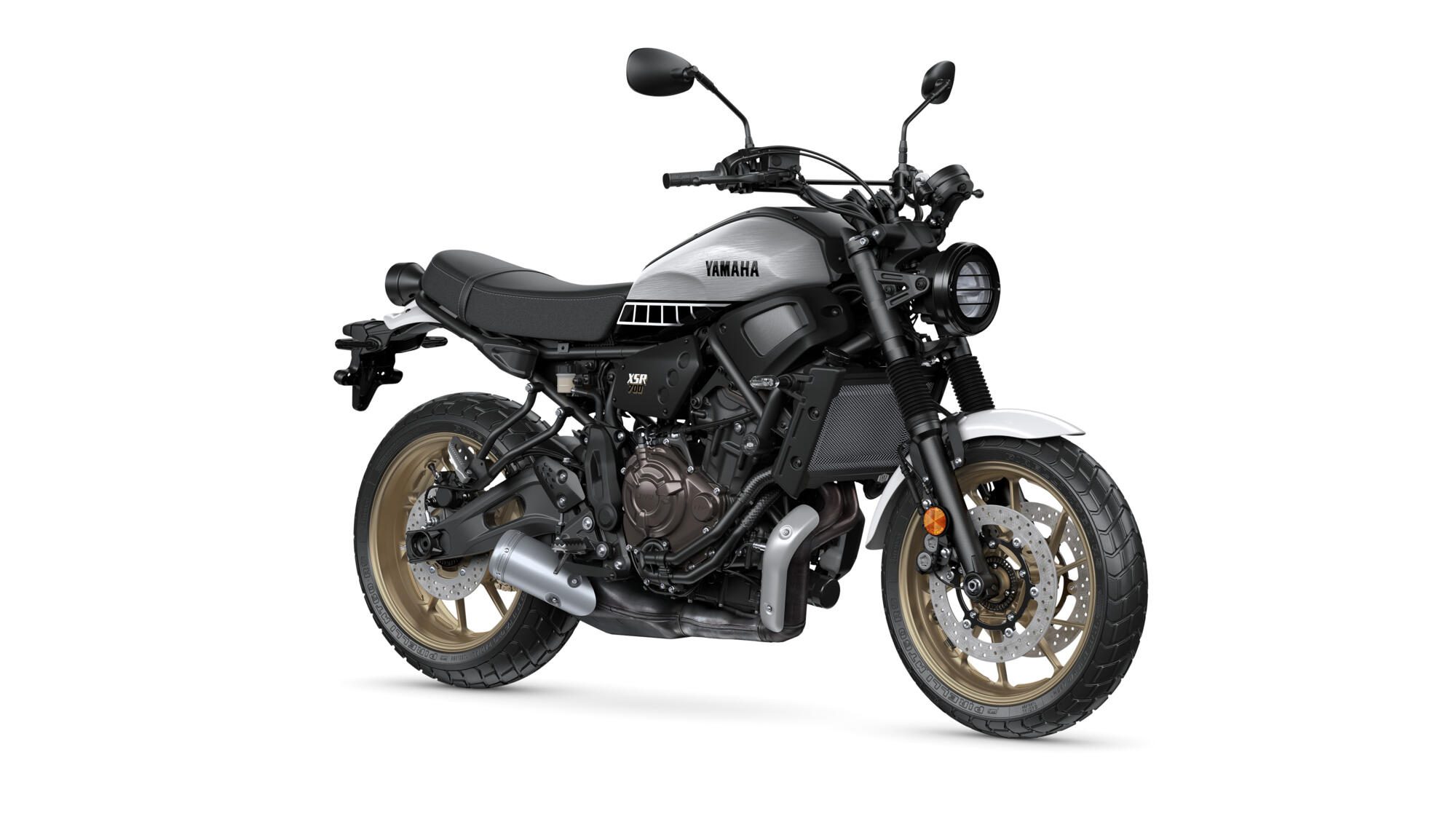

XSR700 Legacy
With its timeless scrambler look inspired by Yamaha’s most iconic machines of yesteryear, the XSR700 Legacy is the kind of bike that makes you feel special every time you ride it. But you’ll quickly discover that, behind that classic look, it’s equipped with the latest engine and chassis technology, ready to give you totally thrilling performance.
Take a look
- 35 kW A2 version also available
- Colors and graphics inspired by Yamaha Heritage
- Timeless style, cutting-edge technology
- Light, compact and agile
- The most successful high-torque motor
- Light and slim tubular backbone chassis
- Classic scrambler design
- Handlebar with central reinforcement, grips and robust scrambler-style footrests
- High-tech lighting throughout the XSR family
- Advanced mounted round LCD instrument panel
- Versatile Pirelli MT 60 RS tires
pure and simple fun
Yamaha’s XSR models have an alternative style that combines a retro feel with the most modern technology, giving you the opportunity to enjoy their riding in your own way. With its wide handlebars, round headlights, unique colors and sculpted tires, this compact Sport Heritage bike leaves no one indifferent.
The XSR700 Legacy is a joy to look at… but even more so to drive! The beating heart of this charismatic retro-modern machine is Yamaha’s iconic 690cc CP2 engine, boasting amazing acceleration for its displacement. And the combination of the compact tubular chassis with smooth suspension and sculpted tires provides outstanding agility and grip both on and off the road.
Technical specifications
Engine type: 4-stroke, 2-cylinder, Liquid-cooled, DOHC, CP2, 4-valve
Displacement: 689 cc
Bore x Stroke: 80,0×68,6 mm
Compression ratio: 11.5:1
Maximum power: 54,0 kW (73,4 CV)/8750 r/min
Limited power version: 35.0 kW (47.6 PS) @ 7,750 rpm
Maximum torque: 67,0 Nm (6,8 kgf・m)/6500 r/min
Lubrication system: Wet sump
Transmission system: constant take, 6 speed
Clutch type: Wet, Multi-disc
Ignition system: electronic ignition (TCI)
Start System: Electronic ignition (TCI)
Transmission system: Constant take, 6 speed
Final Drive: Chain
Approved consumption: 4.3l/100km
CO2 emission: 100g/km
Carburetor: fuel injection
Chassis: Diamond
Pivot lead angle: 24°30′
Pivot advance: 90 mm
Front suspension system: telescopic fork
Rear suspension system: (Link Type Suspension), Swing Arm
Front Travel: 130 mm
Rear travel: 130mm
Front brake: 298 mm
Rear brake: 245 mm
Front tire: 120/70 ZR 17M/C (58W) tubeless
Rear tire: 180/55 ZR 17M/C (73W) in camera
Total length: 2,075mm
Total width: 865mm
Total height: 1,120mm
Seat height: 855mm
Distance between axis: 1,405mm
Minimum ground clearance: 140mm
Weight (including full oil tank and fuel tank): 190kg
Fuel tank capacity: 14l
Oil tank capacity: 3.00l
